Home >> GMC >> 2024 >> Acadia AT4 >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Bolted Exterior Body Panels And Closures >> Repair Instructions >> Front Side Door Weatherstrip Replacement - Body Side >> Removal Procedure

Removal Procedure

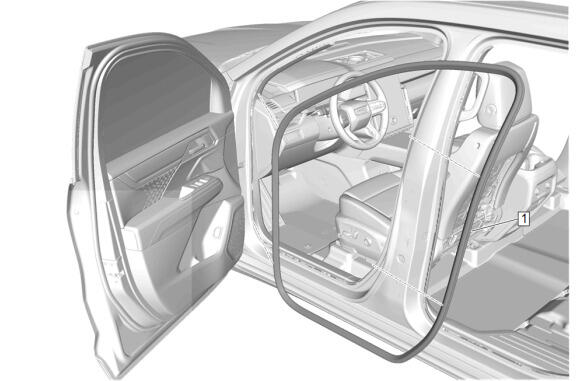

  1. GM6475636Courtesy of GENERAL MOTORS COMPANY

    Start at the rear upper corner of the door opening and pull the weatherstrip away from the door opening flange.

  2. Front Side Door Weatherstrip - Body Side (1) - Remove
