Removal Procedure

  1. GM6475633Courtesy of GENERAL MOTORS COMPANY

    Disconnect the front side door wiring harness electrical connector (1).

  2. GM6475634Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Check Link Bolt (1) - Remove

  3. Mark the location of the front side door hinges with a grease pencil to aid in alignment during installation.
  4. Support the door before removing the hinge fastener.
  5. Front Side Door Hinge Bolt - Door Side (2) - Remove [4x]
  6. GM6475635Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, remove the front side door. (1)

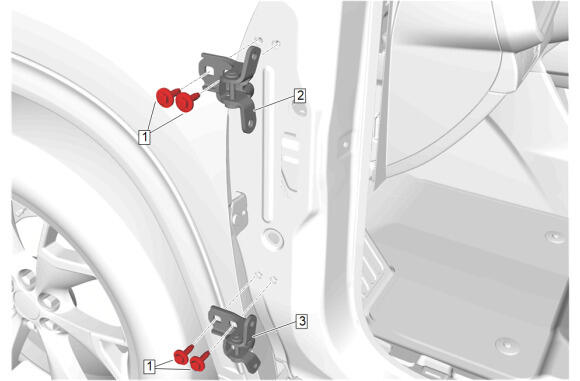

  7. GM6397914Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    It is only necessary to replace the affected hinge (s).

    Mark the location of the front side door upper hinge (2) and the front side door lower hinge (3) with a grease pencil to aid alignment during installation.

  8. Front Side Door Hinge Bolt - Body Side (1) - Remove [4x]
  9. Front Side Door Upper Hinge (2) - Remove
  10. Front Side Door Lower Hinge (3) - Remove
