Removal Procedure

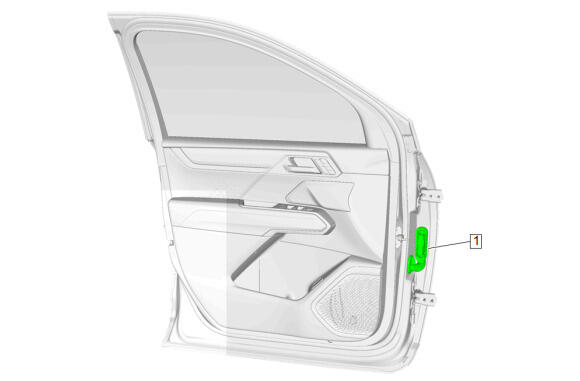

  1. GM6475633Courtesy of GENERAL MOTORS COMPANY

    Disconnect the front side door wiring harness electrical connector (1).

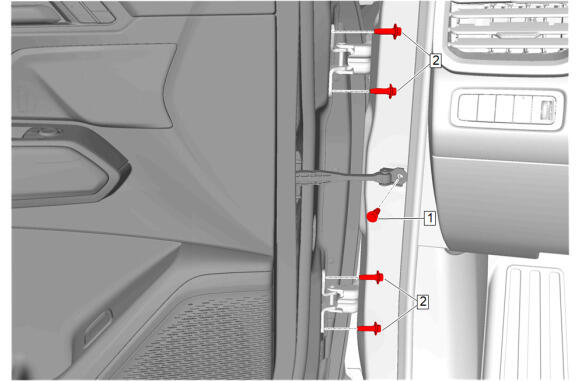

  2. GM6475634Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Check Link Bolt (1) - Remove

  3. Mark the location of the front side door hinges with a grease pencil to aid in alignment during installation.
  4. Support the door before removing the hinge fastener.
  5. Front Side Door Hinge Bolt - Door Side (2) - Remove [4x]

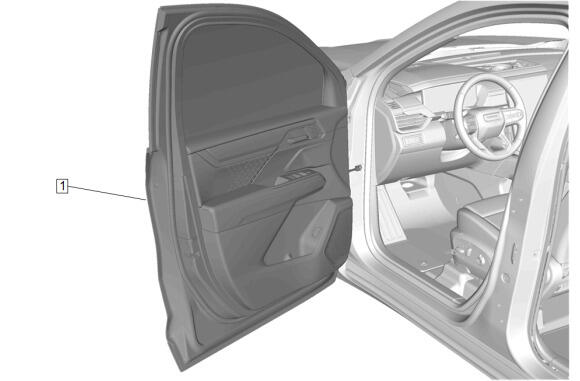

  6. GM6475635Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, remove the front side door. (1)

  7. Transfer components as necessary.
