Removal Procedure

Front Side Door Trim - Remove - Front Side Door Trim Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Radio Front Side Door Speaker Bolt (1) - Remove
Disconnect the electrical connector.
Radio Front Side Door Speaker (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

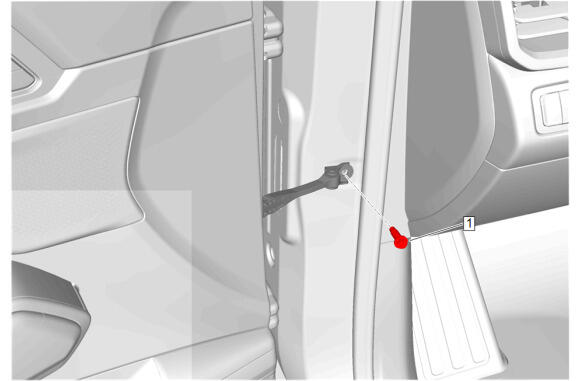

Front Side Door Check Link Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY
Front Side Door Check Link Nut (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

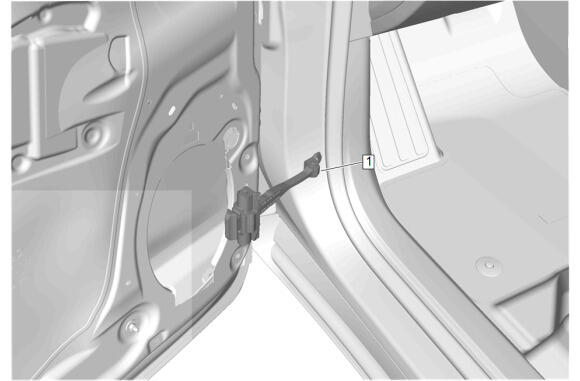

Remove the front side door check link (1) through the radio front side door speaker hole.
