Removal Procedure

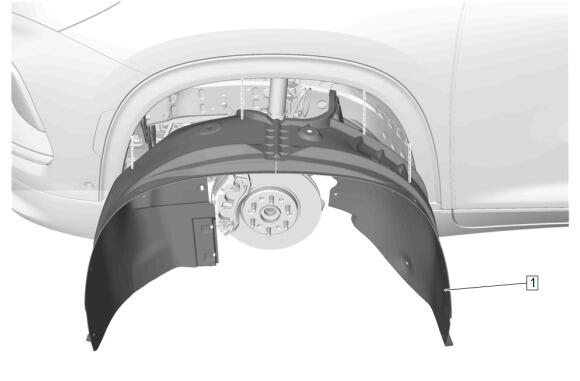

  1. GM6578527Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner (1) - Remove - Front Wheelhouse Liner Replacement

  2. GM6465609Courtesy of GENERAL MOTORS COMPANY

    Front Fender Washer (1) - Remove

  3. Front Fender Insulator (2) - Remove
