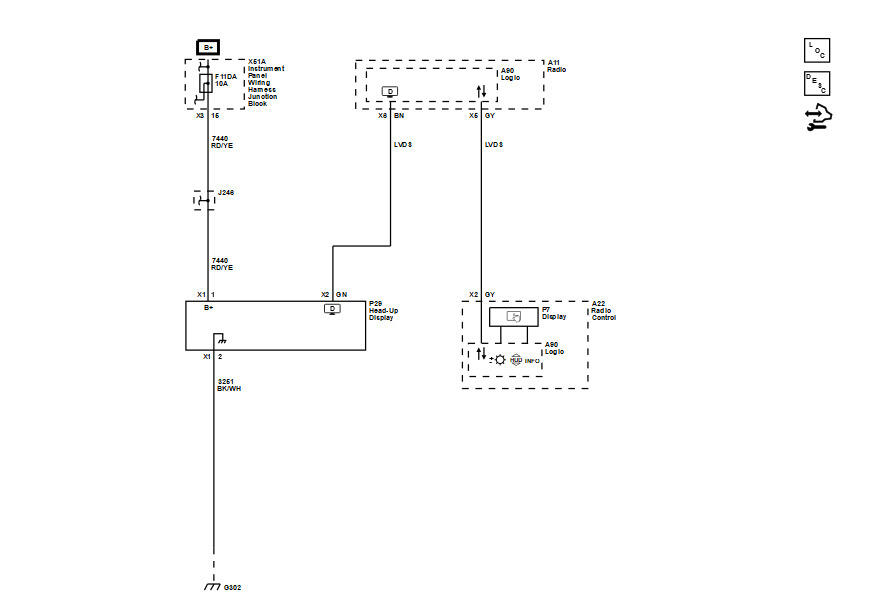

Home >> GMC >> 2024 >> Acadia AT4 >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel, Displays And Gauges >> Schematic Wiring Diagrams >> Head - Up Display Wiring Schematics >> Head - Up Display
