Removal Procedure

  1. Front Bumper Fascia - Remove - Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (AT4)

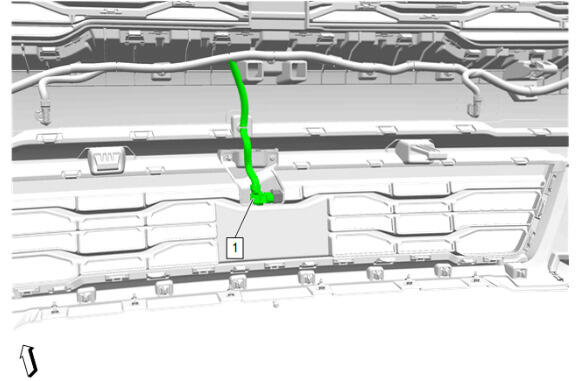

  2. GM6464295Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector (1).

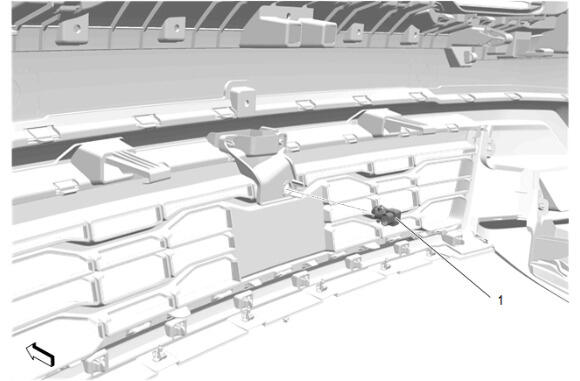

  3. GM6464296Courtesy of GENERAL MOTORS COMPANY

    Ambient Air Temperature Sensor (1) - Remove
