Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

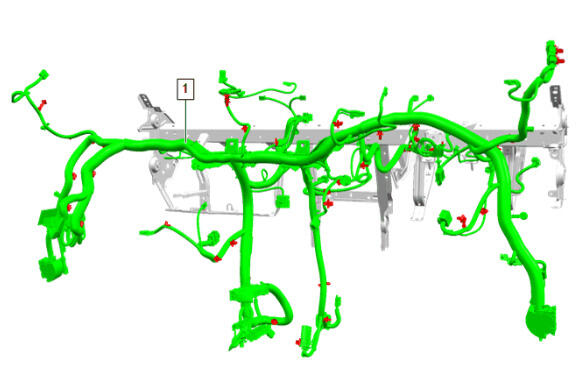

Instrument Panel Wiring Harness (1) - Install
Connect the instrument panel wiring harness retainers and connectors.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

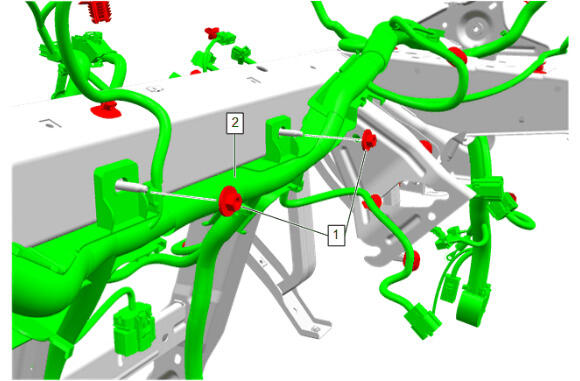

Instrument Panel Tie Bar Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

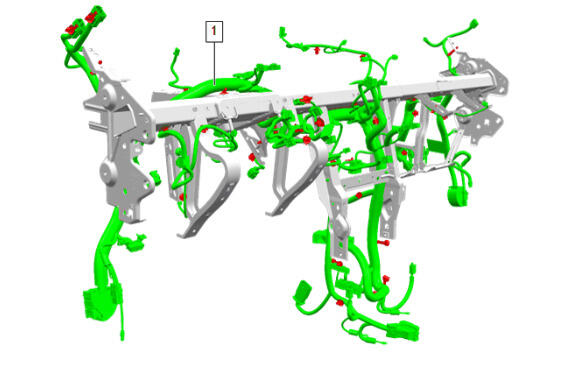

Connect the instrument panel wiring harness retainers and connectors.
Instrument Panel Tie Bar (1) - Install - Instrument Panel Tie Bar Replacement
