Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Steering Column Lower Trim Cover (2) - Install

CAUTION:

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Turn the steering wheel approximately 90 degrees to the left of the centered position.
Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Turn the steering wheel approximately 90 degrees to the right of the centered position.
Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
Turn the steering wheel to the centered position.
Courtesy of GENERAL MOTORS COMPANY

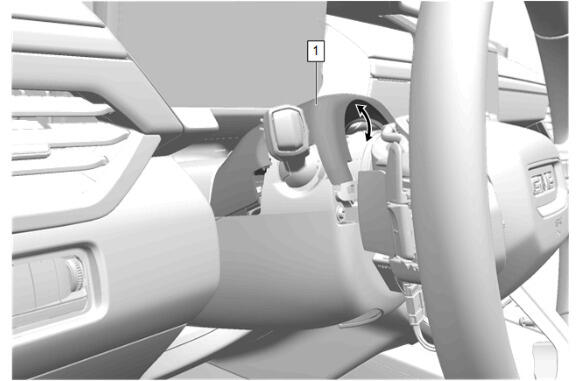

Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
