Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

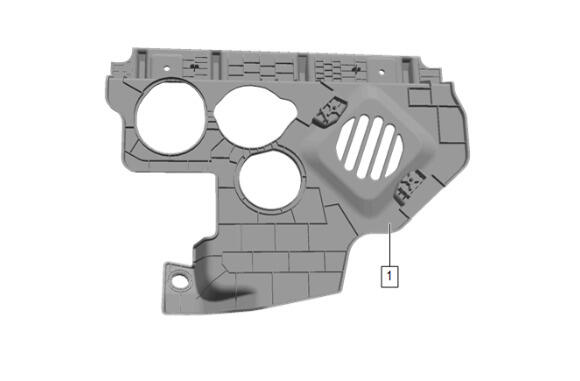

Instrument Panel Lower Trim Panel Insulator - Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

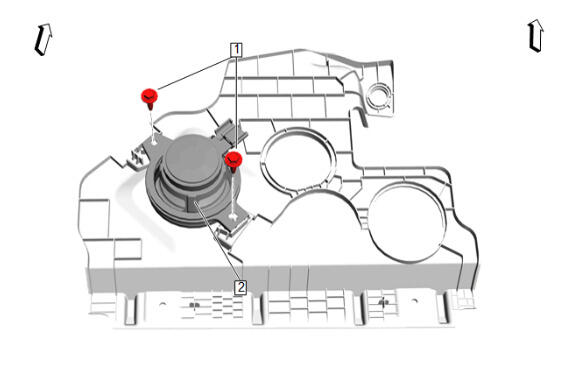

Regulatory Emergency Call Backup Speaker (2) - Install

CAUTION:

Refer to Fastener Caution .

Regulatory Emergency Call Backup Speaker Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

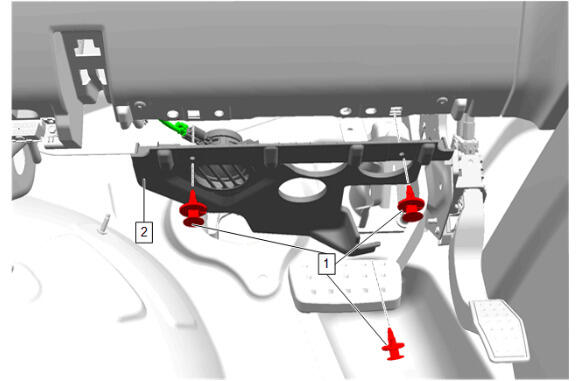

Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install [3x]
