Installation Procedure

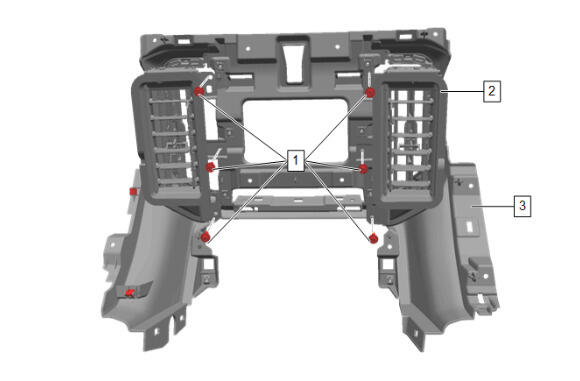

  1. GM6467062Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet (2) - Install [2x]

    2. CAUTION:

    Refer to Fastener Caution

  2. Instrument Panel Center Air Outlet Bolt (1) - Install and tighten [6x] - Fastener Specifications
  3. Instrument Panel Lower Center Trim Panel (3) - Install

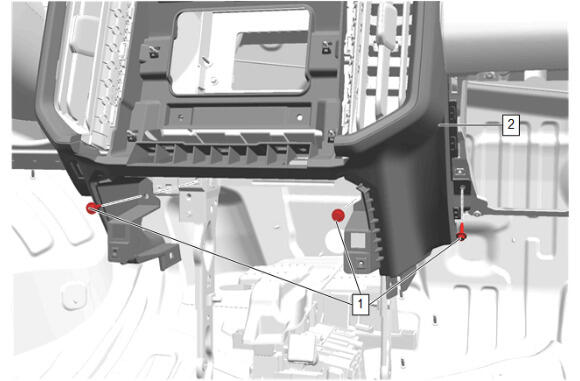

  4. GM6467061Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad Bolt (1) - Install and tighten [3x] - Fastener Specifications

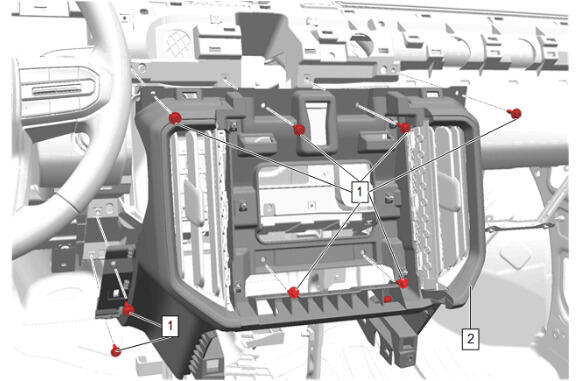

  5. GM6467060Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad Bolt (1) - Install and tighten [8x] - Fastener Specifications

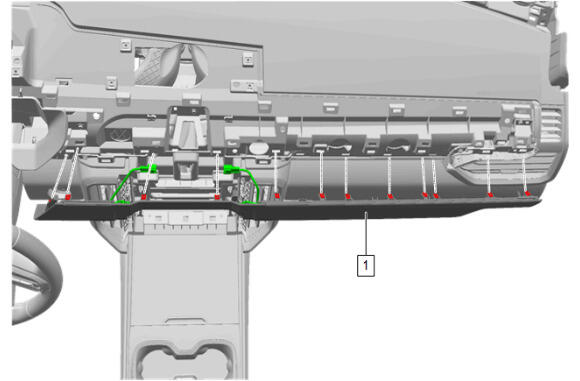

  6. GM6467086Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  7. Instrument Panel Trim Plate Applique - Right Side (1) - Install

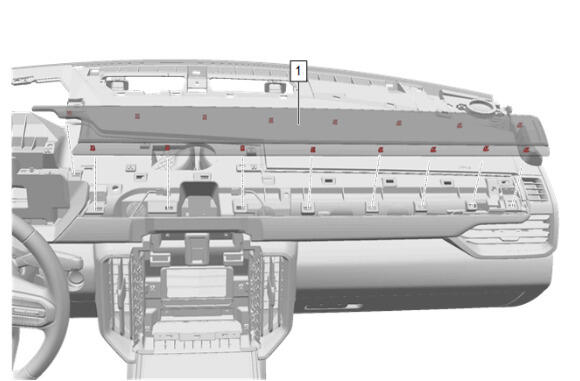

  8. GM6467084Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Pad (1) - Install

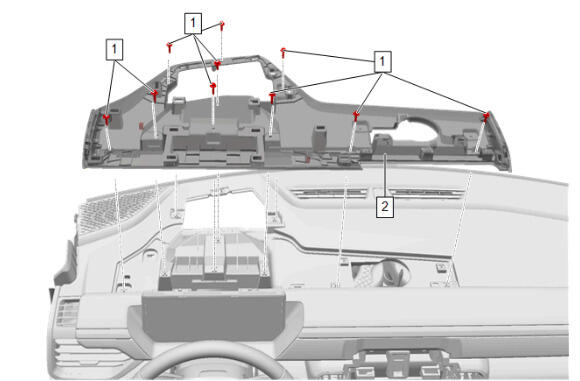

  9. GM6467087Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel Bracket (2) - Install

  10. Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [10x] - Fastener Specifications

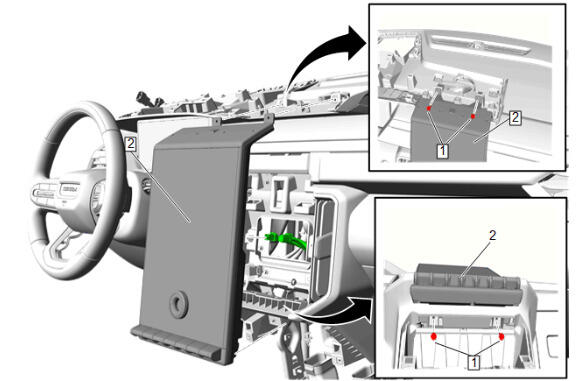

  11. GM6463571Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  12. Radio Control (2) - Install
  13. Radio Control Bolt (1) - Install and tighten [4x] - Fastener Specifications
  14. Front Floor Console (1) - Install - Front Floor Console Removal and Installation

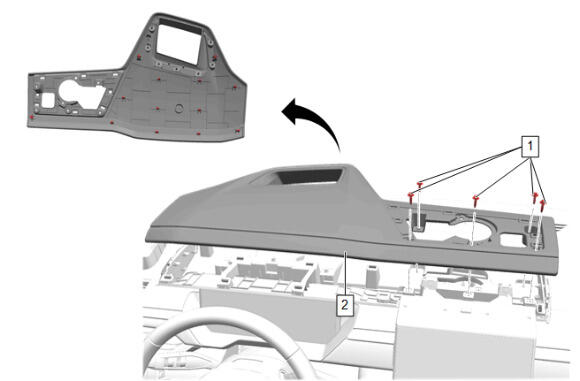

  15. GM6467055Courtesy of GENERAL MOTORS COMPANY

    { If equipped } Connect the electrical connector.

  16. Instrument Panel Instrument Cluster Hood (2) - Install
  17. Instrument Panel Upper Trim Pad Bolt (1) - Install and tighten [5x] - Fastener Specifications

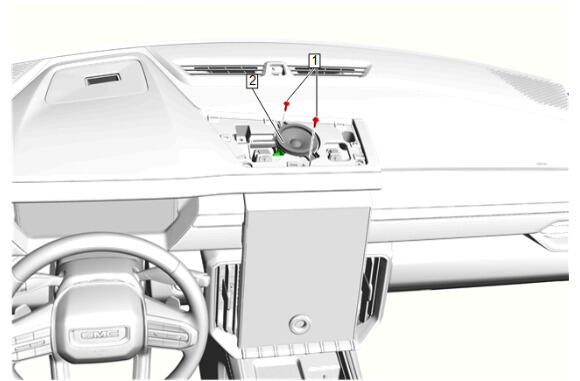

  18. GM6455252Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  19. Radio Front Center Speaker (2) - Install
  20. Radio Front Center Speaker Bolt (1) - Install and tighten [2x] - Fastener Specifications

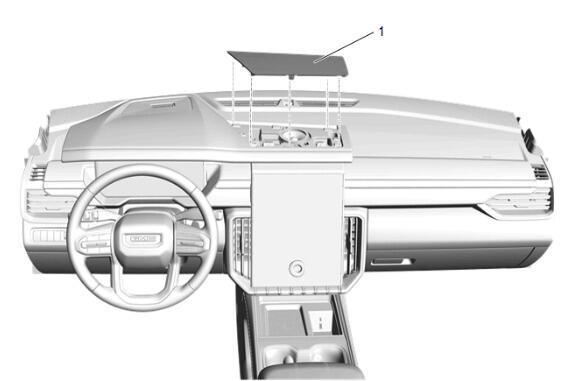

  21. GM6455253Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker Grille (1) - Install

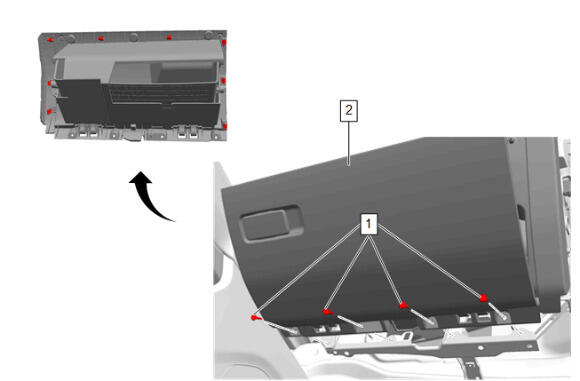

  22. GM6467053Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (2) - Install

  23. Instrument Panel Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications

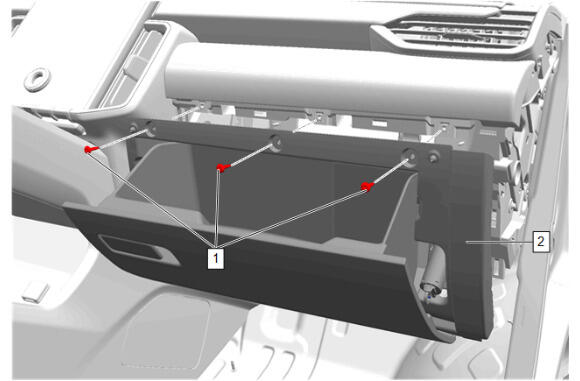

  24. GM6467052Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Bolt (1) - Install and tighten [3x] - Fastener Specifications

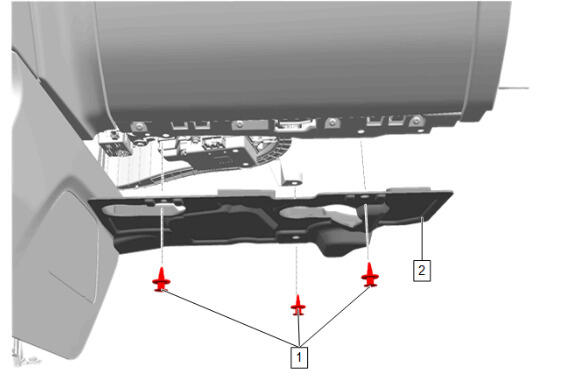

  25. GM6467066Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator - Right Side (2) - Install

  26. Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install [3x]

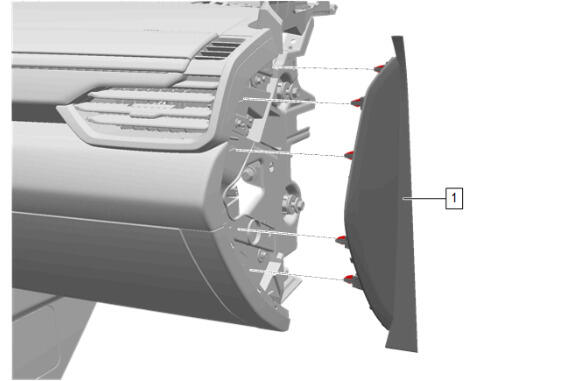

  27. GM6467068Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Right Side (1) - Install

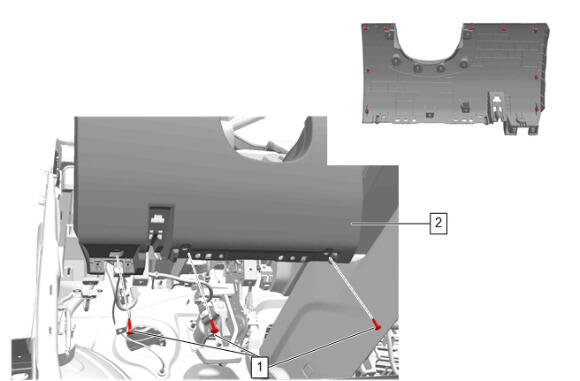

  28. GM6467059Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (2) - Install

  29. Instrument Panel Knee Bolster Bolt (1) - Install and tighten [3x] - Fastener Specifications

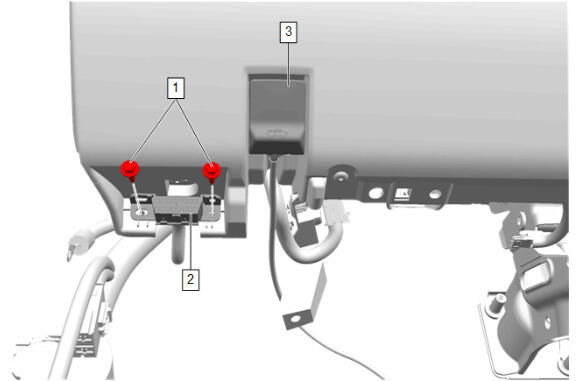

  30. GM6467058Courtesy of GENERAL MOTORS COMPANY

    Hood Primary Latch Release Cable Handle (3) - Install

  31. Data Link Connector (2) - Install
  32. Data Link Connector Bolt (1) - Install and tighten [2x] - Fastener Specifications

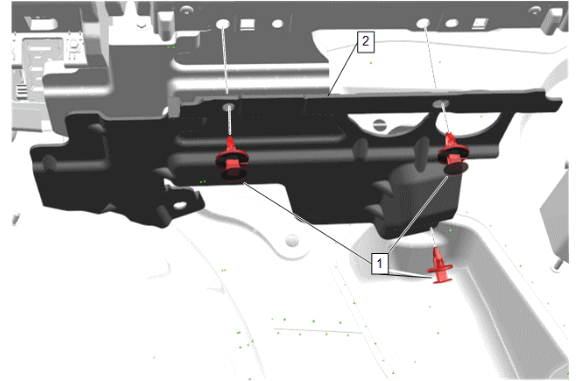

  33. GM6667950Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator - Left Side (2) - Install

  34. Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install [3x]

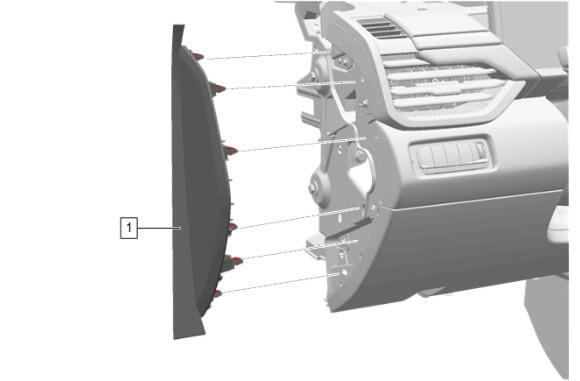

  35. GM6467067Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install
