Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

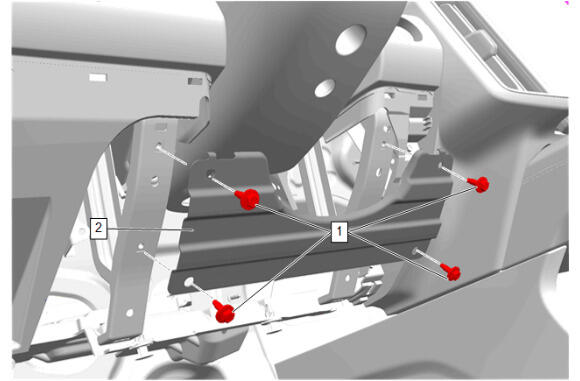

Instrument Panel Knee Bolster Deflector (2) - Install

CAUTION:

Instrument Panel Tie Bar Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (2) - Install
Instrument Panel Knee Bolster Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Hood Primary Latch Release Cable Handle (3) - Install
Install the On - Board Diagnostics (2) from the Instrument Panel Knee Bolster.
The On - Board Diagnostics Bolt. (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator - Left Side (2) - Install

NOTE:

Quantity of retainers may vary based on option content.

Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install [4x]
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover - Left Side (1) - Install
