Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

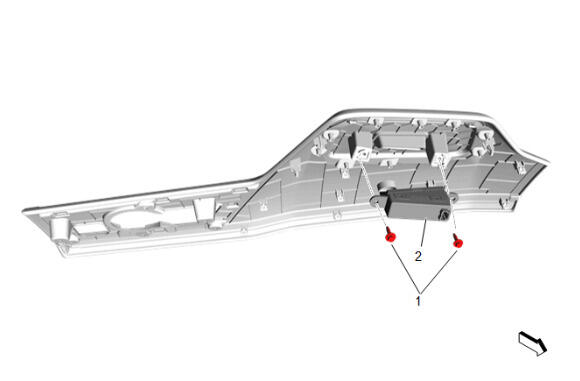

Forward Collision Alert Display (2) - Install

CAUTION:

Forward Collision Alert Display Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

{ If equipped } Connect the electrical connector.
Instrument Panel Instrument Cluster Hood (2) - Install
Instrument Panel Upper Trim Pad Bolt (1) - Install and tighten [5x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Radio Front Center Speaker (2) - Install
Radio Front Center Speaker Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Radio Front Center Speaker Grille (1) - Install
