Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

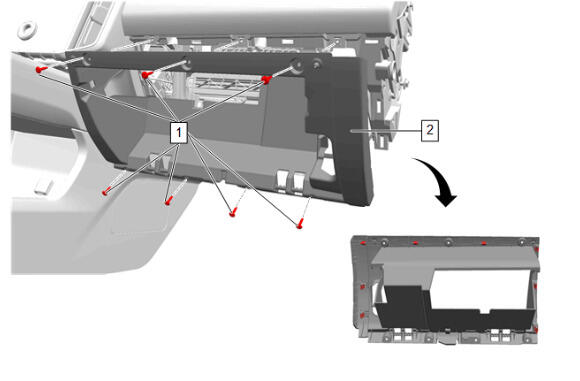

Instrument Panel Compartment Door Opening Frame (2) - Install

CAUTION:

Instrument Panel Compartment Door Opening Frame Bolt (1) - Install [7x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

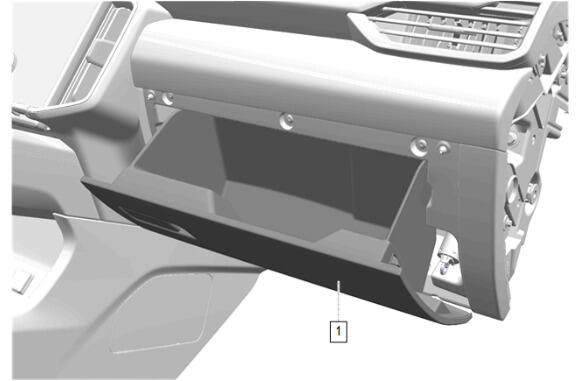

Instrument Panel Compartment Door (1) - Install
Squeeze the sides of the instrument panel compartment and install the compartment door past the stop.
Courtesy of GENERAL MOTORS COMPANY

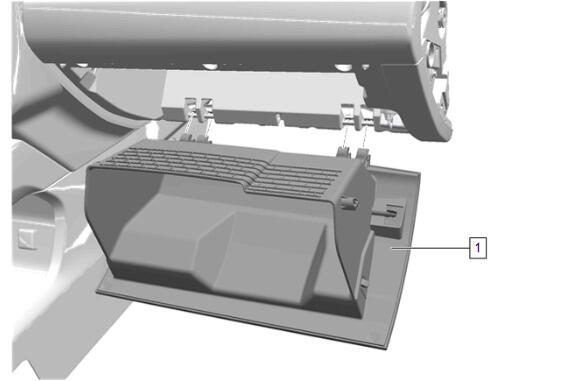

Install the Instrument Panel Compartment Door Dampener to the Instrument Panel Compartment Door (1).
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator - Right Side (2) - Install
Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install [3x]
