Installation Procedure

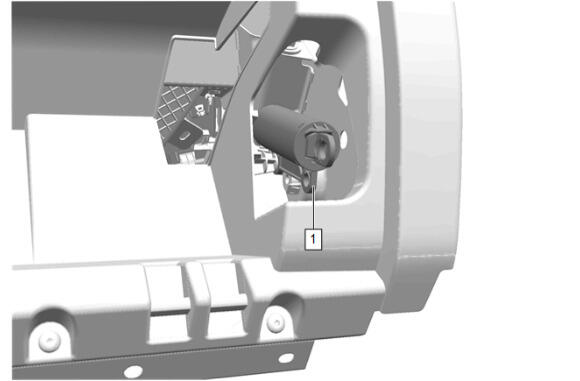

  1. GM6467045Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door Dampener (1) - Install

  2. GM6467051Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Install

  3. Squeeze the sides of the instrument panel compartment and install the compartment door past the stop.
  4. GM6467050Courtesy of GENERAL MOTORS COMPANY

    Install the Instrument Panel Compartment Door Dampener to the Instrument Panel Compartment Door (1).
