Installation Procedure

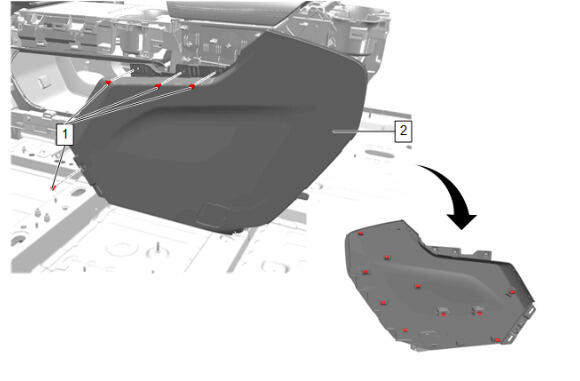

  1. GM6467033Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Floor Rear Console Side Trim Panel (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Front Floor Rear Console Side Trim Panel Bolt (1) - Install and tighten [4x] - Fastener Specifications

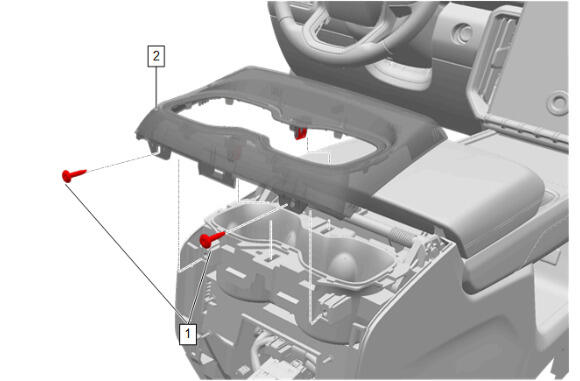

  3. GM6467035Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Trim Plate (2) - Install

  4. Front Floor Rear Console Trim Plate Bolt (1) - Install and tighten [2x] - Fastener Specifications

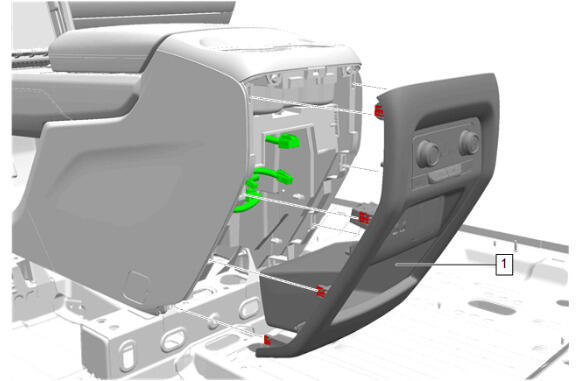

  5. GM6467021Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  6. Front Floor Console Rear Trim Panel (1) - Install

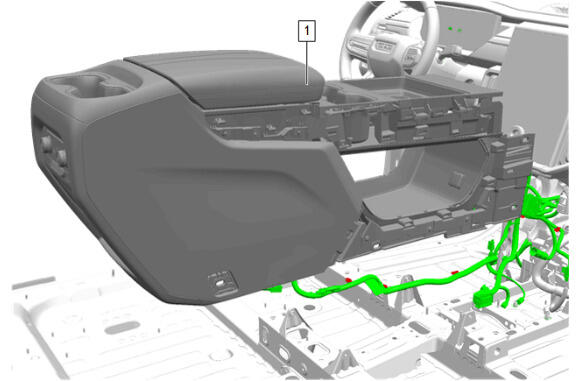

  7. GM6467024Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Removal and Installation
