Installation Procedure

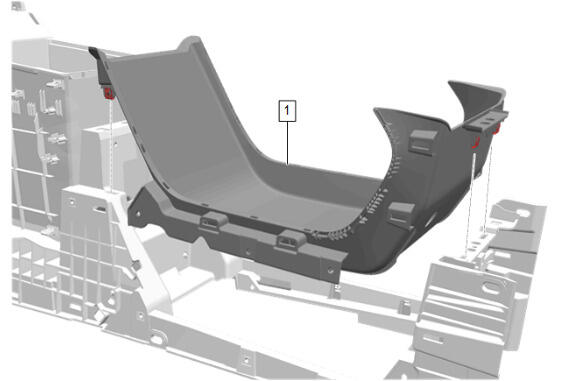

Front Floor Console Stowage Tray (1) - Install
Front Floor Console Accessory Power Rear Receptacle Retainer (1) - Install
Route the connector through the front floor console accessory power rear receptacle retainer. Align the retainer to the slot in the opening.

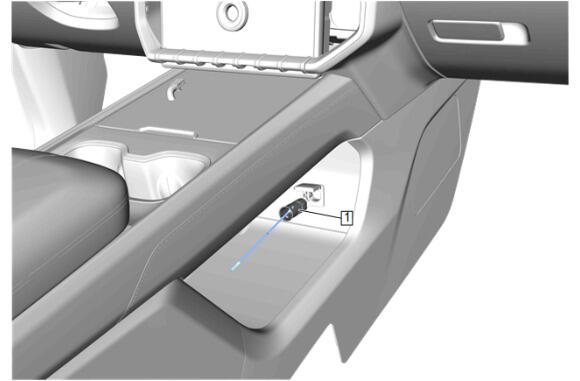

- Connect the electrical connector to the accessory power receptacle (1).
- Install the retainer by pressing into place until fully seated.

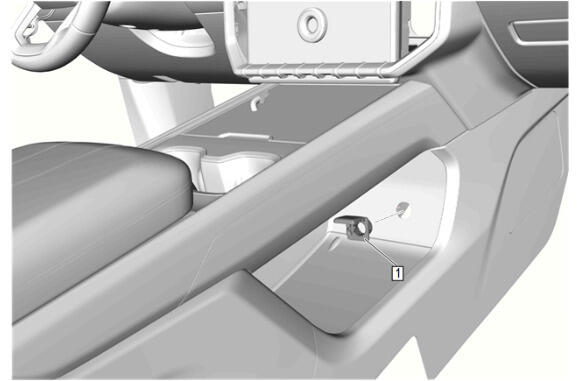

- Align the tabs on the receptacle (1) to the slots in the retainer. Install the accessory power receptacle by pressing into place until fully seated.
- Connect the wiring harness retainers.
- CAUTION:
Refer to Fastener Caution

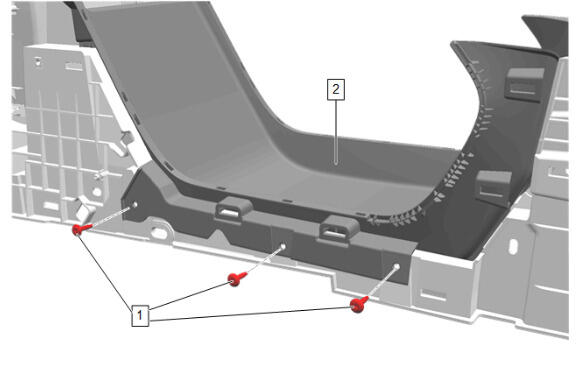

Front Floor Console Stowage Tray Bolt (1) - Install and tighten [3x] - Fastener Specifications

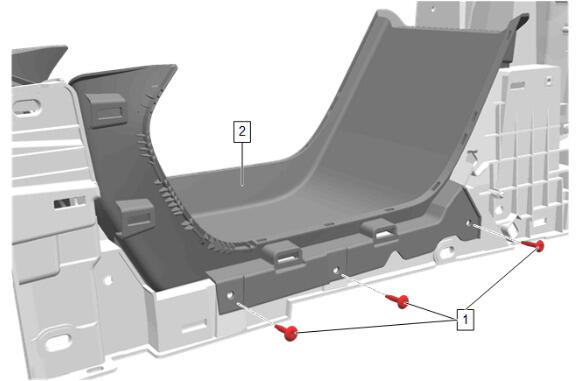

Front Floor Console Stowage Tray Bolt (1) - Install and tighten [3x] - Fastener Specifications
Front Floor Console Extension Panel - Middle (1) - Install
Connect the electrical connector and install the wiring harness retainers as necessary.
- Front Floor Console Compartment Trim Plate (2) - Install
- Front Floor Console Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
{ If equipped } Connect the electrical connector.
- { If equipped } Front Floor Console Front Compartment (2) - Install
- { If equipped } Front Floor Console Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
Connect the electrical connector.
- Front Floor Console Front Compartment (2) - Install
- Front Floor Console Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
Front Floor Rear Console Side Trim Panel - Left Side and Right Side (2) - Install [2x]
- Front Floor Rear Console Side Trim Panel Bolt - Left Side and Right Side (1) - Install and tighten [8x] - Fastener Specifications
Front Floor Rear Console Trim Plate (2) - Install
- Front Floor Console Cup Holder Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connector.
- Front Floor Console Rear Trim Panel (1) - Install
Front Floor Console Trim Plate (1) - Install
Close the front floor console armrest (1).
Front Floor Console (1) - Install - Front Floor Console Removal and Installation
During installation of the front floor console front compartment, ensure the front floor console auxiliary cooling intermediate duct is properly engaged.
During installation of the front floor console front compartment, ensure the front floor console auxiliary cooling intermediate duct is properly engaged.
