Installation Procedure

  1. GM6467024Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install

  2. Connect the electrical connector and install the wiring harness retainers as necessary.

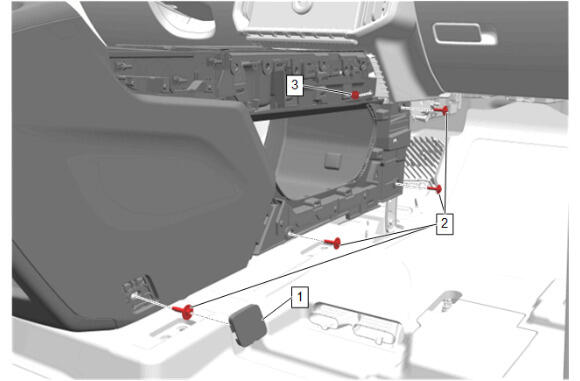

  3. GM6667961Courtesy of GENERAL MOTORS COMPANY

    Reposition the seat as necessary.

    4. CAUTION:

    Refer to Fastener Caution

  4. Front Floor Console Extension Panel Bolt (3) - Install and tighten - Fastener Specifications
  5. Front Floor Console Bolt (2) - Install and tighten [4x] - Fastener Specifications
  6. Front Floor Console Bolt Access Hole Cover (1) - Install

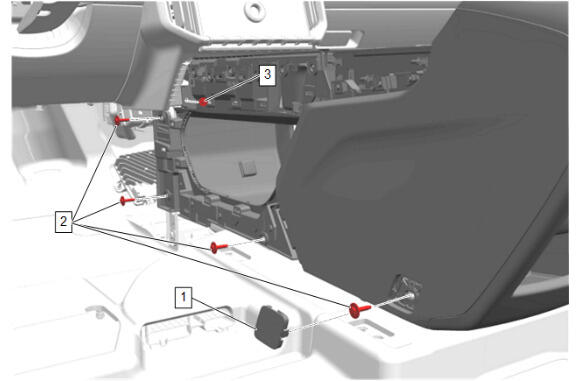

  7. GM6667959Courtesy of GENERAL MOTORS COMPANY

    Reposition the seat as necessary.

  8. Front Floor Console Extension Panel Bolt (3) - Install and tighten - Fastener Specifications
  9. Front Floor Console Bolt (2) - Install and tighten [4x] - Fastener Specifications
  10. Front Floor Console Bolt Access Hole Cover (1) - Install
  11. GM6467025Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Side Trim Panel - Left Side and Right Side (1) - Install [2x]

  12. GM6467014Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (2) - Install

  13. Front Floor Console Extension Panel Bolt (1) - Install and tighten - Fastener Specifications
  14. GM6467018Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Front Cover (1) - Install

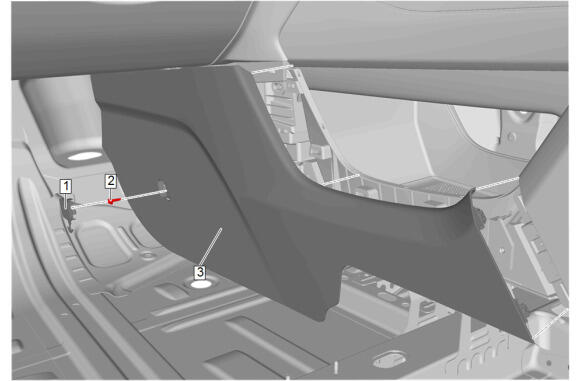

  15. GM6399479Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (3) - Install

  16. Front Floor Console Extension Panel Bolt (2) - Install and tighten - Fastener Specifications
  17. Front Floor Console Bolt Access Hole Cover (1) - Install
