Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Using a flat - bladed plastic trim tool, release the retaining clips.
Disconnect the electrical connectors.
Front Floor Console Rear Trim Panel - Remove
Courtesy of GENERAL MOTORS COMPANY

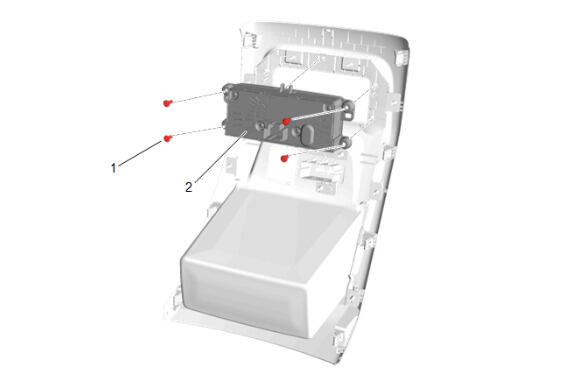

Auxiliary Heater and Air Conditioning Control Bolt (1) - Remove [4x]
Auxiliary Heater and Air Conditioning Control (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Release the retaining tabs.

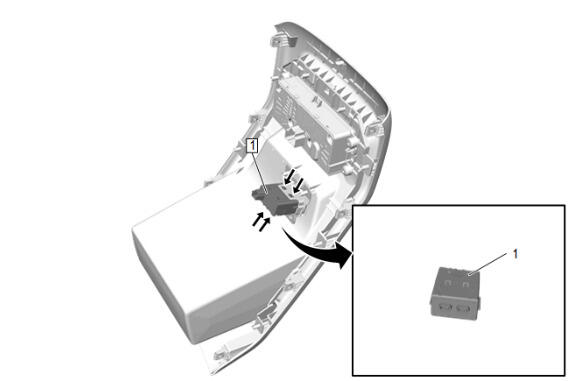

Dual Charge Only Receptacle (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Release the plastic retaining tabs.
Front Floor Console Accessory Power Rear Receptacle (1) - Remove
