Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

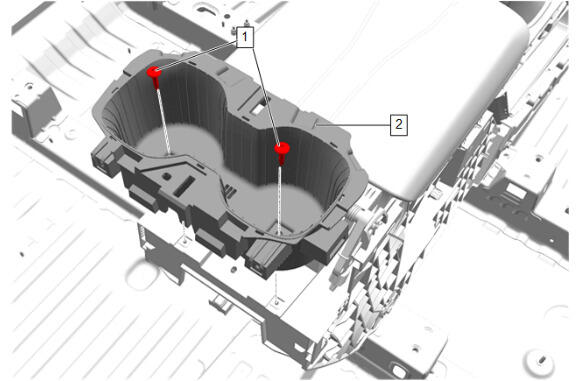

Front Floor Console Rear Cup Holder (2) - Install

CAUTION:

Front Floor Console Cup Holder Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

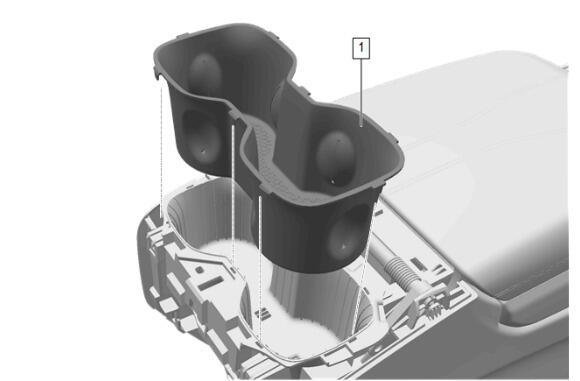

Front Floor Console Rear Cup Holder Liner (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Rear Console Side Trim Panel - Left Side and Right Side (2) @ Front Floor Console Rear Cup Holder - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Floor Rear Console Trim Plate (2) - Install
Front Floor Rear Console Trim Plate Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Front Floor Console Rear Trim Panel (1) - Install
