Removal Procedure

  1. GM6467024Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Remove - Front Floor Console Removal and Installation

  2. GM6473010Courtesy of GENERAL MOTORS COMPANY

    Open the front floor console armrest (1).

  3. GM6467030Courtesy of GENERAL MOTORS COMPANY

    Using a flat - bladed plastic trim tool, release the retaining clips.

  4. Front Floor Console Trim Plate (1) - Remove
  5. GM6467017Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment Bolt (1) - Remove [4x]

  6. Using a flat - bladed plastic trim tool, release the retaining clips.
  7. Front Floor Console Compartment (2) - Remove
  8. Disconnect the electrical connector.

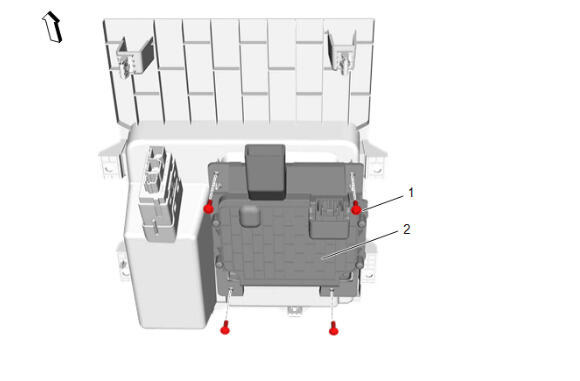

  9. GM6464277Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bracket Bolt (1) - Remove [4x]

  10. Wireless Charging System Module (2) - Remove
  11. GM6464274Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bolt (1) - Remove [4x]

  12. Wireless Charging System Module (2) @ Wireless Charging System Module Bracket (3) - Remove
  13. USB Receptacle - Remove
