Installation Procedure

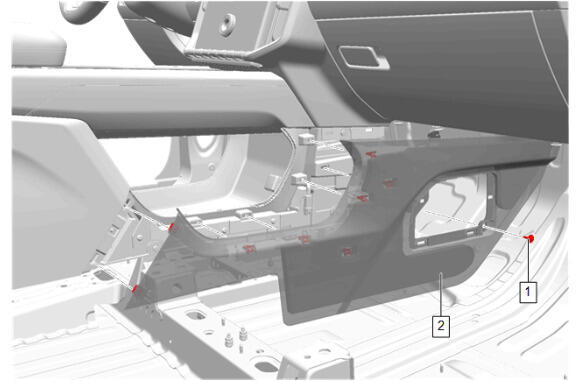

  1. GM6467014Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Front Floor Console Extension Panel Bolt (1) - Install and tighten - Fastener Specifications
  3. GM6467018Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Front Cover (1) - Install
