Installation Procedure

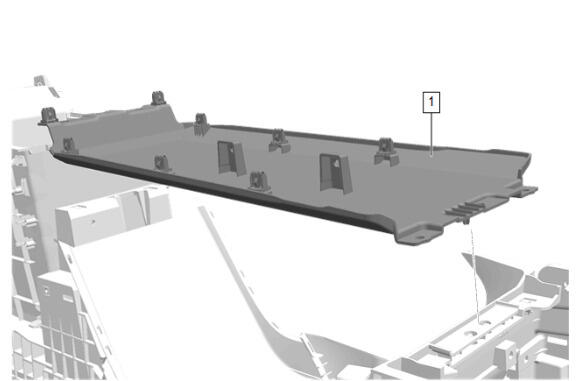

  1. GM6467015Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Middle (1) - Install

  2. GM6467011Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment Trim Plate (2) - Install

  3. Connect the electrical connectors and install the wiring harness retainers as necessary.
    4. CAUTION:

    Refer to Fastener Caution

  4. Front Floor Console Compartment Trim Plate Bolt. (1) - Install and tighten [4x] - Fastener Specifications
  5. GM6467016Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the front floor console auxiliary cooling intermediate duct is properly engaged.

    { If equipped } Connect the electrical connector.

  6. { If equipped } Front Floor Console Front Compartment. (2) - Install
  7. { If equipped } Front Floor Console Front Compartment Bolt. (1) - Install and tighten [4x] - Fastener Specifications
  8. GM6467017Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the front floor console auxiliary cooling intermediate duct is properly engaged.

    Connect the electrical connector.

  9. Front Floor Console Front Compartment. (2) - Install
  10. Front Floor Console Front Compartment Bolt. (1) - Install and tighten [4x] - Fastener Specifications
  11. GM6467030Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate (1) - Install

  12. GM6473010Courtesy of GENERAL MOTORS COMPANY

    Close the front floor console armrest (1).

  13. Front Floor Console - Install - Front Floor Console Removal and Installation
