Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

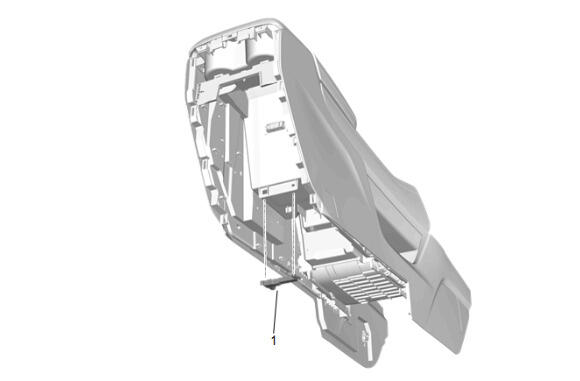

Low Frequency Console Number 2 Antenna (1) - Install
Secure the retaining tab.
Courtesy of GENERAL MOTORS COMPANY

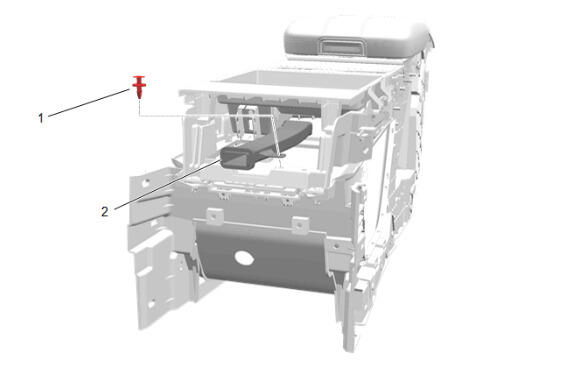

Front Floor Console Auxiliary Cooling Intermediate Duct (1) - Install
Front Floor Console Auxiliary Cooling Intermediate Duct Retainer (1) - Install
Front Floor Console - Install - Front Floor Console Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

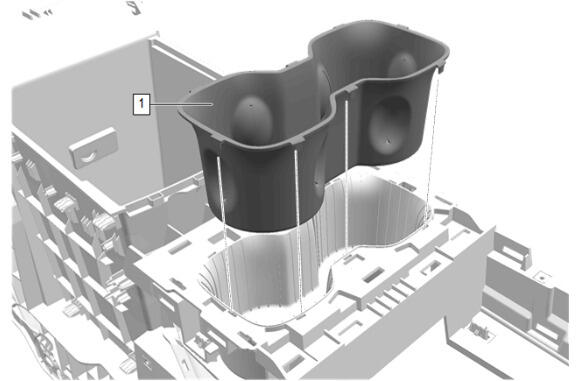

Front Floor Console Cup Holder Liner (1) - Install
Courtesy of GENERAL MOTORS COMPANY

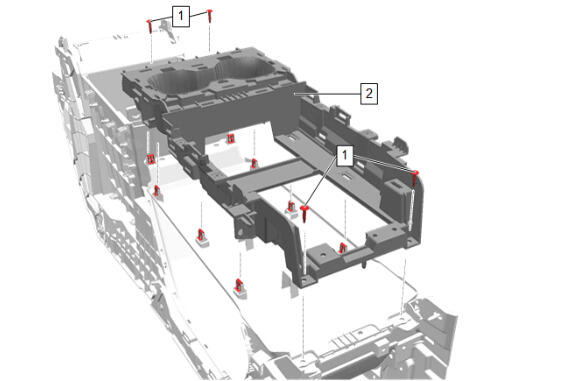

Front Floor Console Compartment Trim Plate (2) - Install
Connect the electrical connectors and install the wiring harness retainers as necessary.

CAUTION:

Front Floor Console Compartment Trim Plate Bolt. (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the front floor console auxiliary cooling intermediate duct is properly engaged.

{ If equipped } Connect the electrical connector.

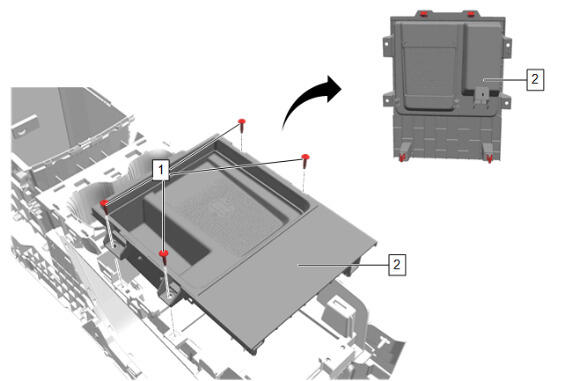

{ If equipped } Front Floor Console Front Compartment. (2) - Install
{ If equipped } Front Floor Console Front Compartment Bolt. (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the front floor console auxiliary cooling intermediate duct is properly engaged.

Connect the electrical connector.

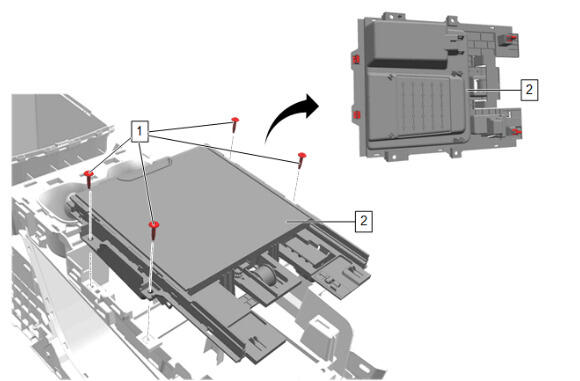

Front Floor Console Front Compartment. (2) - Install
Front Floor Console Front Compartment Bolt. (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Close the front floor console armrest (1).
Front Floor Console (1) - Install - Front Floor Console Removal and Installation
