Installation Procedure

  1. GM6467010Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment Divider (1) - Install

  2. GM6467030Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate (1) - Install

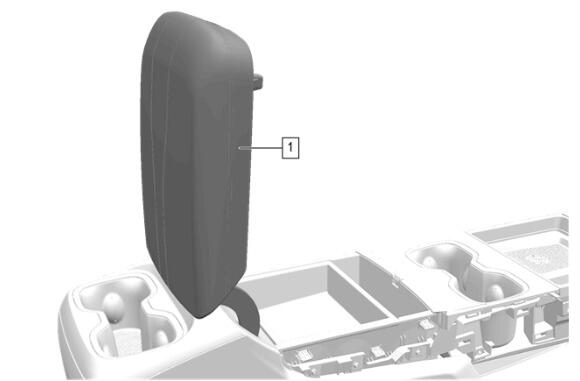

  3. GM6473010Courtesy of GENERAL MOTORS COMPANY

    Close the front floor console armrest (1).

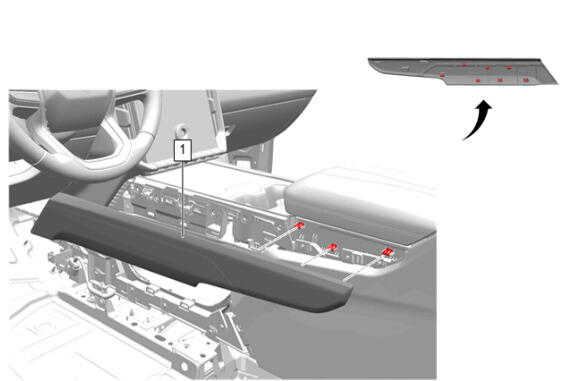

  4. GM6467025Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Side Trim Panel - Left Side and Right Side (1) - Install [2x]
