Installation Procedure

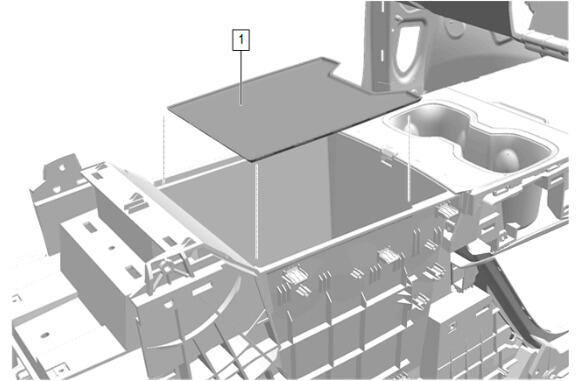

  1. GM6467009Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Center Compartment Liner (1) - Install

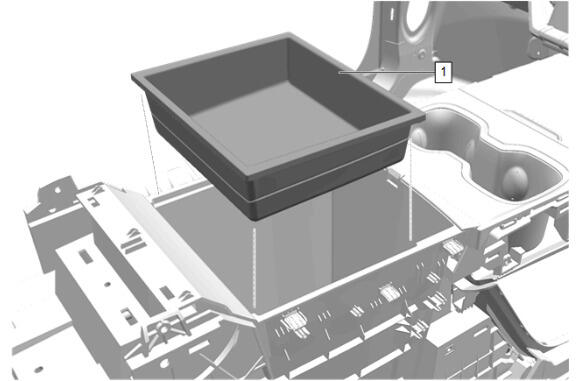

  2. GM6473051Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Stowage Tray (1) - Install

  3. GM6473010Courtesy of GENERAL MOTORS COMPANY

    Close the front floor console armrest (1).
