Front Headlamp Replacement (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

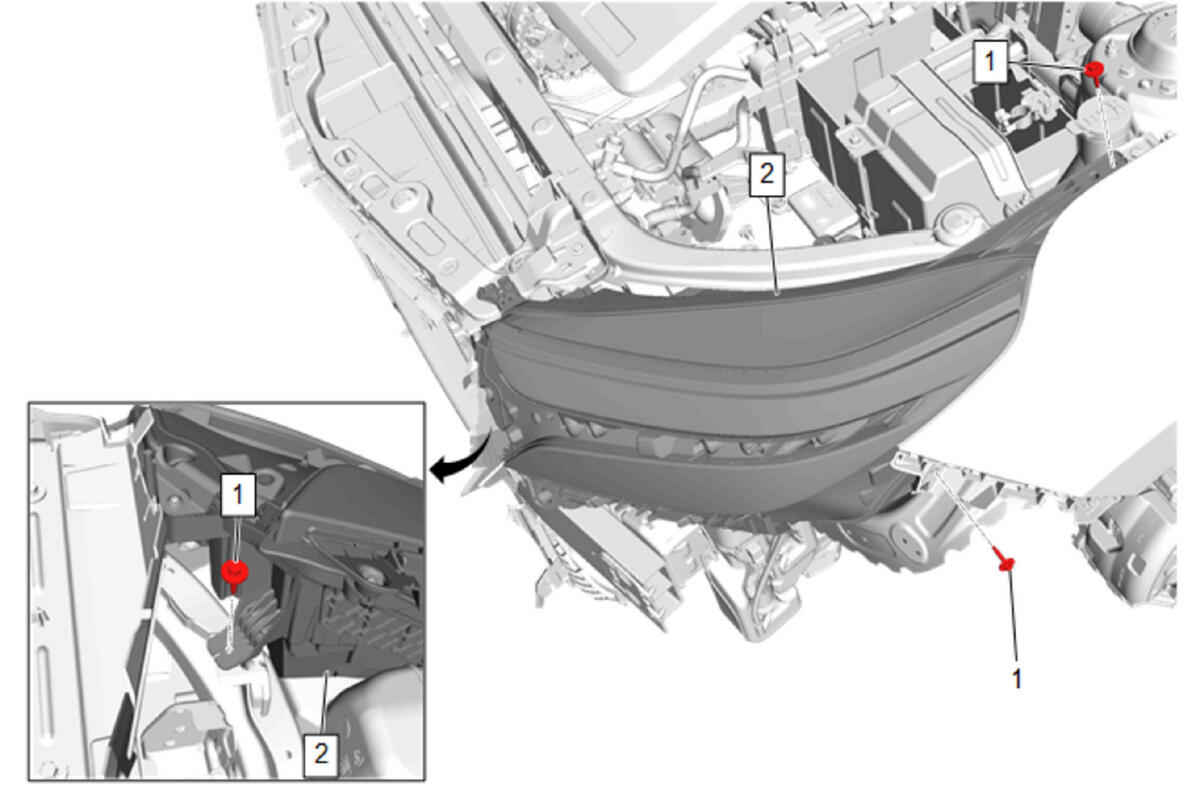

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Removal and Installation (Equinox)
1	Headlamp Screw [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Headlamp Procedure Disconnect the wiring harness retainers as necessary. Disconnect the electrical connector. After installation, aim the front headlamps. Front Headlamp Aiming

Callout

Component Name

Headlamp Screw [3x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Headlamp

Procedure
