X103 Forward Lamp Wiring Harness to Engine Coolant Fan Wiring Harness (X88)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

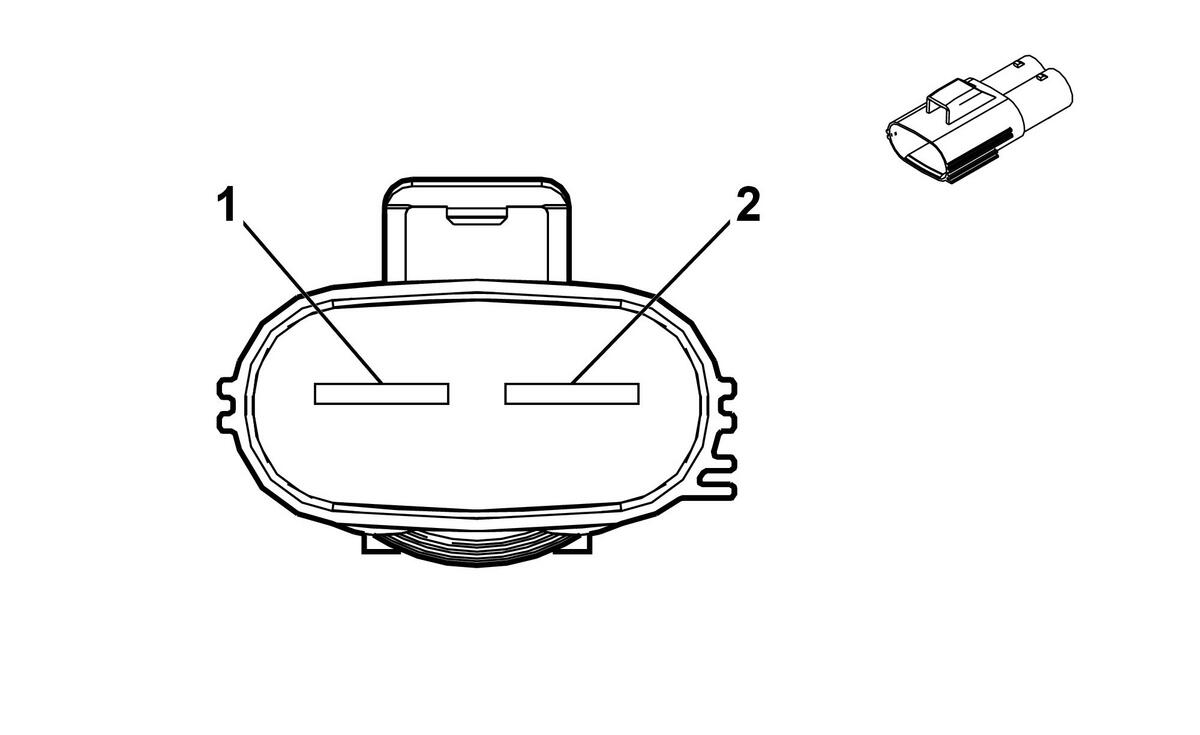

Connector Part Information
- Harness Type: Forward Lamp Wiring Harness
- OEM Connector: 7283-3215-30
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 375 Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Engine Coolant Fan Wiring Harness
- OEM Connector: 13581070
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M 375 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-22 (RD) |
J-38125-11A |
| II |
Not required |
J-35616-21 (RD) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
8 |
RD/BU |
302 |
I |
|
Battery Positive Voltage |
1 |
8 |
RD/BU |
302 |
II |
- |
| 2 |
- |
- |
- |
- |
- |
Not Occupied |
2 |
- |
- |
- |
- |
- |
