Liftgate Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

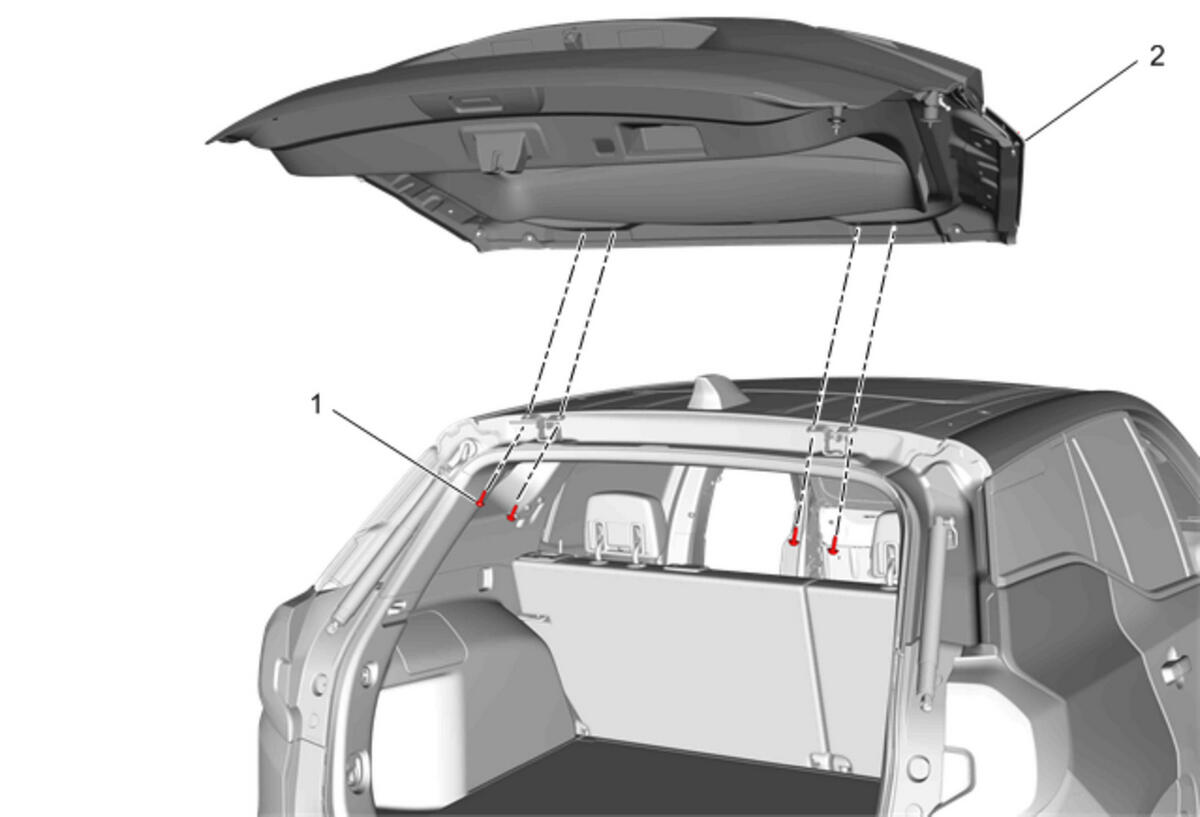

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Preliminary Procedures Liftgate Strut Replacement (Terrain) Disconnect all electrical connectors.
1	Liftgate Hinge Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Liftgate Procedure With the aid of an assistant, remove the liftgate. Transfer components as necessary.

Callout

Component Name

WARNING:

When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Preliminary Procedures

Liftgate Strut Replacement (Terrain)
Disconnect all electrical connectors.

Liftgate Hinge Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Liftgate

Procedure

With the aid of an assistant, remove the liftgate.
Transfer components as necessary.
