Air Inlet Grille Panel Replacement
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

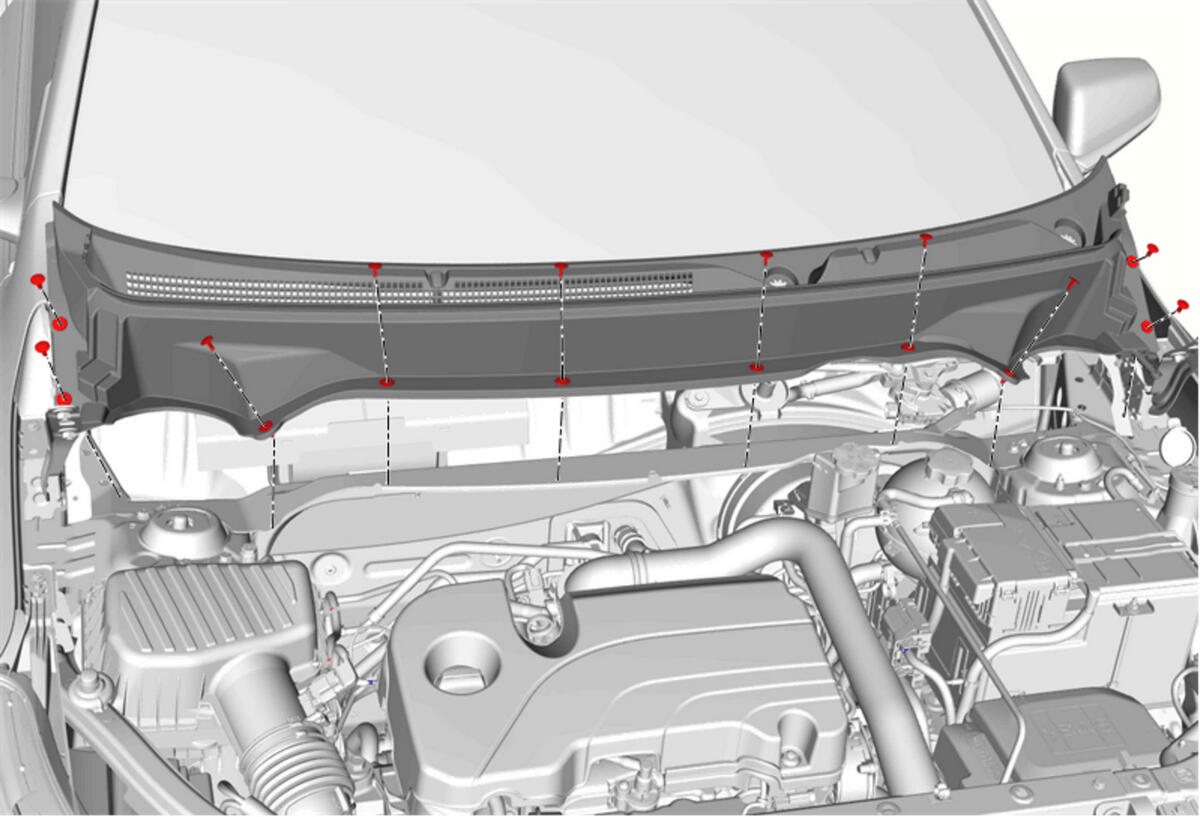

Callouts in the following chart represent components shown in graphic above.
| Callout |
Component Name |
|
Preliminary Procedures
- Windshield Wiper Arm Replacement
- Remove left and right side air inlet grille panel extensions. Air Inlet Grille Panel Extension Replacement (Left Side) , or Air Inlet Grille Panel Extension Replacement (Right Side)
|
| 1 |
Air Inlet Grille Panel Retainer [9x]
NOTE:
Quantity of retainers may vary.
|
| 2 |
Air Inlet Grille Panel Procedure
- Disconnect the windshield washer nozzle hose.
- Use an appropriate tool to carefully release the air inlet grille panel from the windshield.
- Lift up the front edge of the air inlet grille panel, slide the grille panel forward from both hood hinges.
- Transfer components as necessary.
|
