Fastener Specifications

GM6215430Courtesy of GENERAL MOTORS COMPANY
Air Suspension Control Module Bracket - GQ2 / GQB / GQC

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Trailer Hitch Platform Nut[2x] - - 22N.m(16 lb ft) Rear Bumper Impact Bar Replacement
2 Trailer Hitch Platform Bolt[3x] - - 22N.m(16 lb ft) Rear Bumper Impact Bar Replacement
GM5833020Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Bolt[6x] - - 2.5N.m (22 lb in) Front Bumper Fascia Removal and Installation
2 Front Bumper Fascia Bolt[6x] - - 2.5N.m (22 lb in) Front Bumper Upper Fascia Replacement
3 Front Bumper Fascia Bolt[6x] - - 2.5N.m (22 lb in) Front Bumper Fascia Lower Bracket Replacement
4 Front Bumper Fascia Bolt[6x] - - 2.5N.m (22 lb in) Front Bumper Fascia Lower Molding Replacement
5 Front Bumper Fascia Guide Bolt[4x] - - 2.5N.m (22 lb in) Front Bumper Fascia Guide Replacement
GM5833032Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Lower Reinforcement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Headlamp Bolt[3x] - - 1.2N.m (11 lb in) Front Bumper Fascia Lower Reinforcement Replacement
GM6046581Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Skid Plate

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Bolt - - 2.5N.m (22 lb in) Front Bumper Fascia Skid Plate Replacement
GM5834292Courtesy of GENERAL MOTORS COMPANY
Front Bumper Impact Bar

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Impact Bar Bolt[8x] - - 100N.m (74 lb ft) Front Bumper Impact Bar Replacement
GM5811452Courtesy of GENERAL MOTORS COMPANY
Front Bumper Lower Shutter

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Splash Shield Bolt[8x] - - 6N.m(53 lb in) Front Bumper Lower Shutter Replacement
GM5833081Courtesy of GENERAL MOTORS COMPANY
Front Bumper Shutter

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Shutter Bolt[6x] - - 9N.m(80 lb in) Front Bumper Shutter Replacement

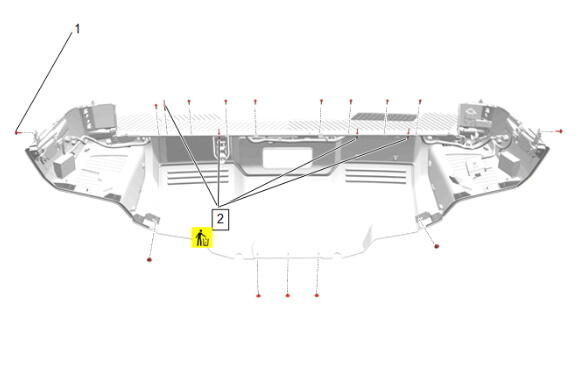

G00619775Courtesy of GENERAL MOTORS COMPANY
Rear Bumper FasciaGQ2 / GQB / GQC

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Bolt[14x] - - 2.5N.m (22 lb in) Rear Bumper Fascia Removal and Installation
2 Rear Bumper Fascia Rivet Yes - - Rear Bumper Fascia Step Pad Replacement - Upper
GM5834731Courtesy of GENERAL MOTORS COMPANY
Rear Bumper FasciaGQH / GQI / GQ0

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Bolt[14x] - - 2.5N.m (22 lb in) Rear Bumper Fascia Removal and Installation
GM6196101Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia Center BracketGQ2 / GQB / GQC

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Bolt - - 2.5N.m (22 lb in) Rear Bumper Fascia Center Bracket Replacement
G00619776Courtesy of GENERAL MOTORS COMPANY

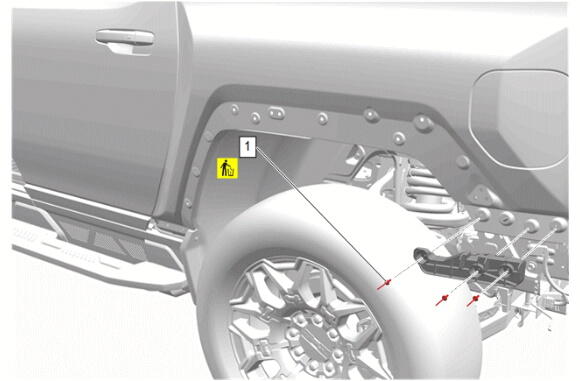

Rear Bumper Fascia Guide - GQ2 / GQB / GQC

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Guide Rivet[3x] Yes - - Rear Bumper Fascia Guide Replacement
GM5834733Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia Guide - GQH / GQI / GQ0

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Guide Rivet[4x] Yes - - Rear Bumper Fascia Guide Replacement
GM5811467Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia Tail Lamp Opening Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Tail Lamp Opening Bracket Bolt[3x] - - 2.5N.m (22 lb in) Rear Bumper Fascia Tail Lamp Opening Bracket Replacement

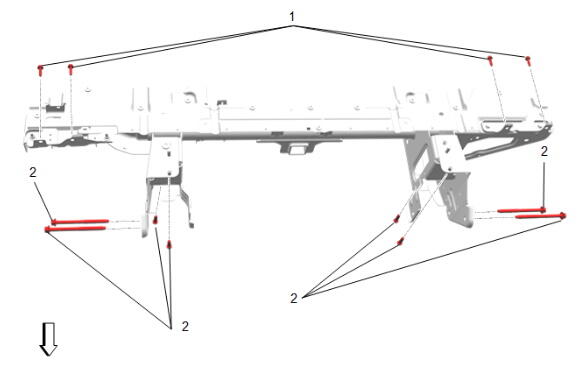

G00619777Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Impact Bar - GQ2 / GQB / GQC

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Trailer Hitch Platform Bolt- Upper
[4x]		 - - 22N.m(16 lb ft) Rear Bumper Impact Bar Replacement
2 Trailer Hitch Platform Bolt[8x] - - 100N.m (74 lb ft) Rear Bumper Impact Bar Replacement
GM5834632Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Impact Bar - GQH / GQI / GQ0

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Trailer Hitch Platform Bolt- Long
[4x]		 - - 160N.m (118 lb ft) Rear Bumper Impact Bar Replacement
2 Trailer Hitch Platform Bolt- Short[4x] - - 100N.m (74 lb ft) Rear Bumper Impact Bar Replacement
GM5991960Courtesy of GENERAL MOTORS COMPANY
Rear Tow Hook

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Tow Hook Bolt[4x] - - 100N.m (74 lb ft) Rear Bumper Fascia Removal and Installation
