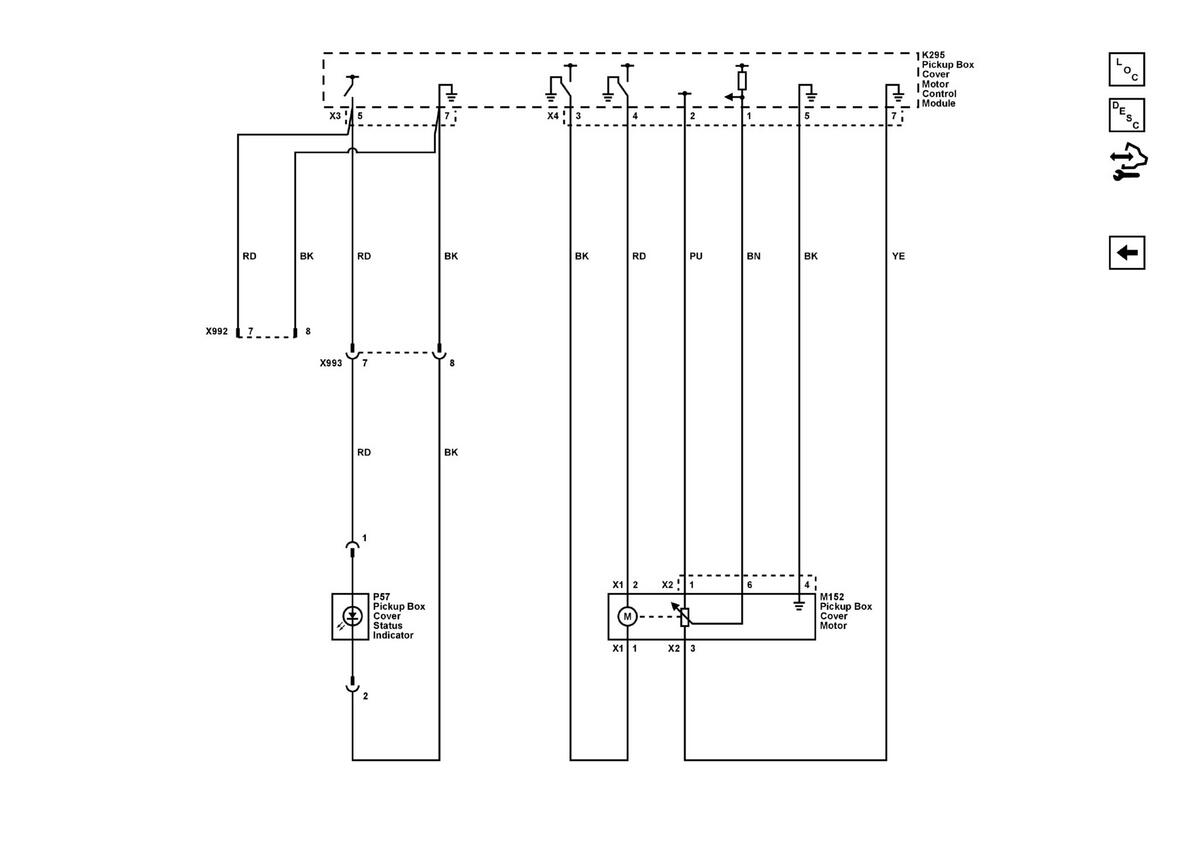

Home >> GMC >> 2023 >> Hummer EV Edition 1 >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Bolted Exterior Body Panels And Closures >> Schematic Wiring Diagrams >> Power Tonneau Cover Wiring Schematics >> Pickup Box Cover - Outputs
