Small Repairs

Small repairs (a small repair is defined as a gouge 1.5 in (40 mm) in diameter or less) can be completed using Qwik Fix Kit P/N "A-GMREPAIRKIT." The GM dealership or the authorized repair center can complete this repair. The parts and vendor information are available in the GM Bed liner Repair website or 800 number. This type of repair is for small areas of damage and uses as twin pack repair material along with a pattern patch.

Process to obtain the required repair kit:

• Access the Ultimate Linings website at www.gmbedlinerrepair.com  or contact Ultimate Linings at 1-800-989-9869 (Domestic or International).
• Select ORDER PARTS on the upper right part of the screen.
• Complete the Request form.
• Ultimate Linings will contact the dealer to complete the order.

Order status can also be obtained through the website by selecting "Check Ticket Status" link at the top.

Additional Items Required:

• Dual Cartridge Caulk Gun P/N 00012-T0990-23 (Should be a part in stock at the dealer, only order if needed).
• Static mixing tips - the kit has 5, if more are needed please order from www.gmbedlinerrepair.com.
• Razor Knife.
• Flat Blade Screwdriver.
• Prep Solvent such as lacquer thinner and clean lint free cloth.
• Bed liner Conditioner - (00012-T0990-01) - Not required but can help the older material match the new repair finish.
• Gloves.
• Safety Goggles.

Repair steps:

Use the following steps to repair small damage area:

1. Courtesy of GENERAL MOTORS COMPANY

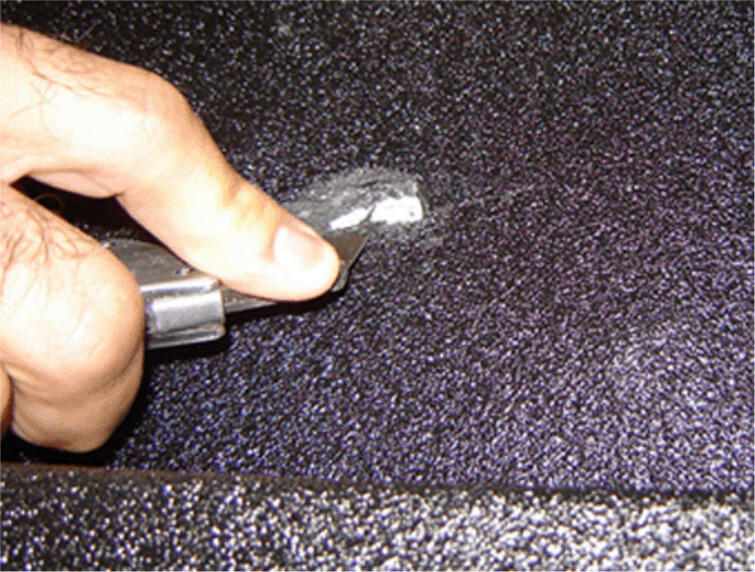

   Use a utility knife or screwdriver to remove any loose debris from the repair area. Bevel the edge of the repair area with the utility knife.

2. Use a prep solvent to clean the area and allow to dry.
3. Place a large paper shop towel next to the repair area.
4. Shake the cartridge material to insure proper mix and insert into the gun.

5. Courtesy of GENERAL MOTORS COMPANY

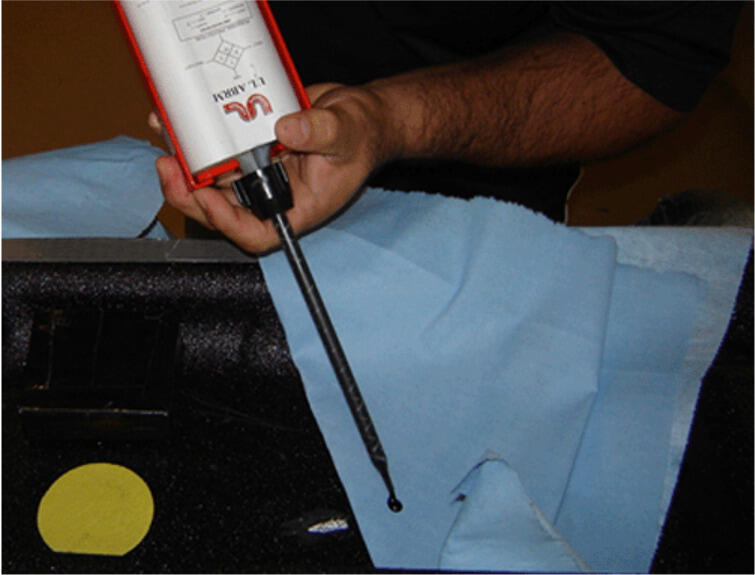

   Purge the mixing tip away from the repair area (on the towel) to ensure proper material mix. Pump the cartridge at least 3 times verifying there are no striations in the material to ensure proper mix. The material should be a solid black color.

6. Courtesy of GENERAL MOTORS COMPANY

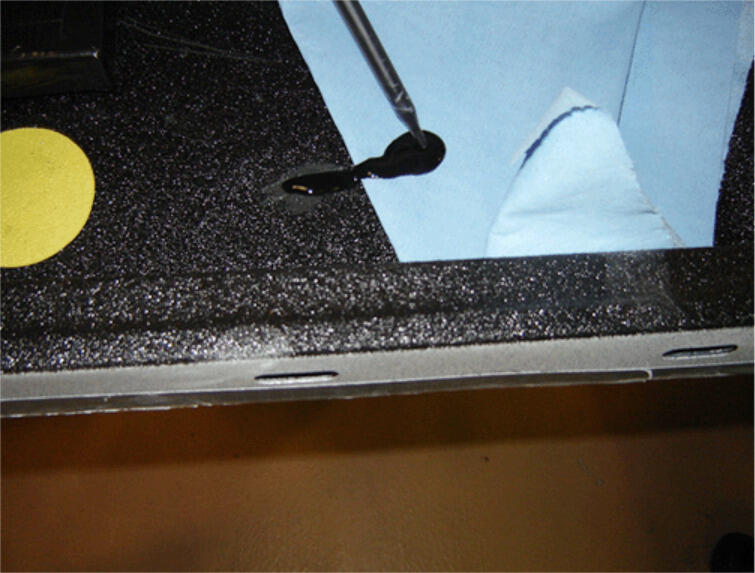

   Noting the viscosity of the repair material, moving from the towel to the repair area, use a slow bead to fill the entire repair area from the outer edges, spiraling into the center moving back to the towel leaving no tail of the material on the repair area.

   If the repair area is overfilled the edges can be feathered out using an edge of the textured pad.

   It is better to slightly overfill the repair area.

7. Courtesy of GENERAL MOTORS COMPANY

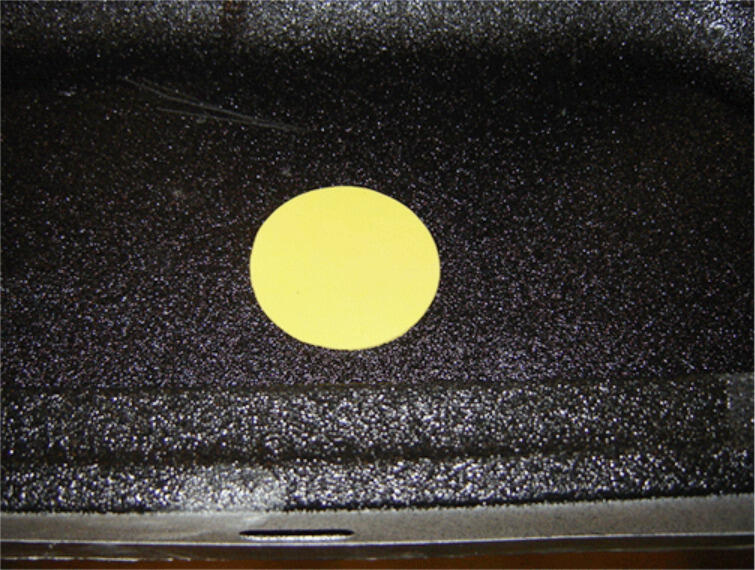

   Place the textured pad over the repair area and apply firm and even pressure for a minimum of 2 minutes.

8. Courtesy of GENERAL MOTORS COMPANY

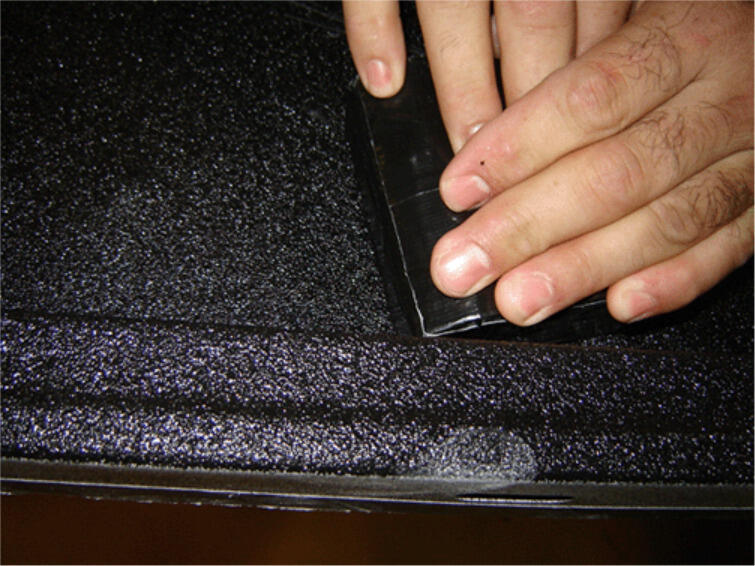

   Using a small block, such as a piece of 2 x 4 wood, allows for a more even pressure application.

9. Courtesy of GENERAL MOTORS COMPANY

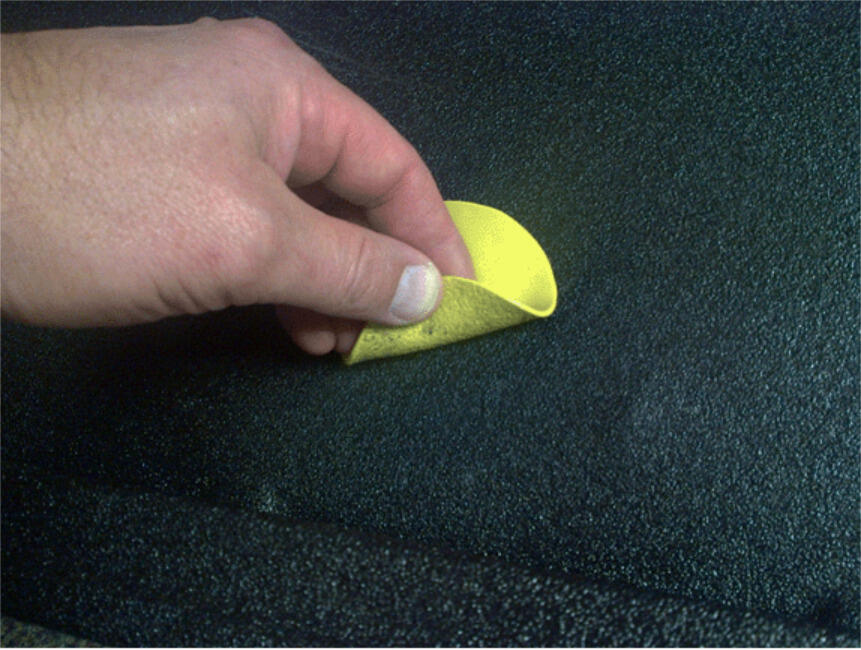

   Release the pressure and slowly remove the pad. If any material sticks to the pad, it can be removed once dry.

10. When completed, wait approximately 10 minutes then apply bed liner conditioner to the repaired area if required to blend the color of the repair with the existing bed liner.

11. Courtesy of GENERAL MOTORS COMPANY

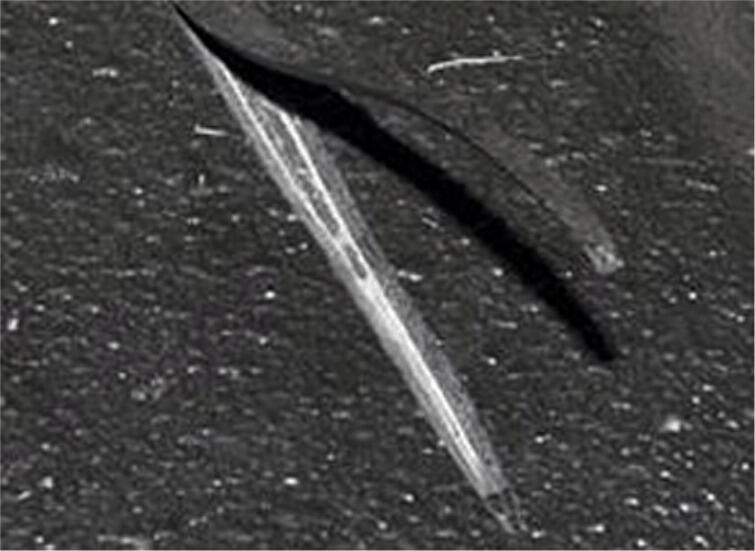

    Long tears are handled in the same way but broken down into smaller sections to allow enough time to complete the section within the cure time of the material and to be small enough to be covered by the textured pad.

12. Left over unmixed material can be kept properly sealed for up to 30 days.
