Removal Procedure
Up/Down or In/Out Adjustment
- Apply a double layer of masking tape around the perimeter of the painted surfaces.
- Rear Side Door Hinge Bolt - Door Side - Loosen
Do NOT remove the bolts from the door.

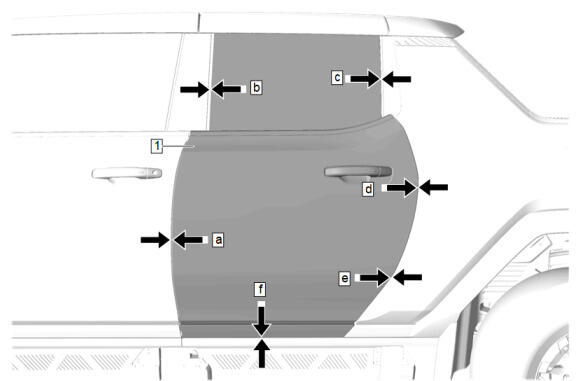

Adjust the rear side door (1) up or down by repositioning the door as necessary.
- Rear side door (1) window to body side upper rear applique (c) 10 ± 1.5 mm (0.39 ± 0.059 in)
- Rear side door (1) to rocker panel molding (f) 0.0 mm ± 0.5 mm (0.0 in ± 0.02 in)
- Adjust the rear side door (1) in or out by repositioning the door as necessary.
- Rear side door (1) to front side door (a) 4.0 mm ± 1.5 mm (0.16 in ± 0.03 in)
- Rear side door (1) window to front side door window frame rear applique (b) 10 ± 1.5 mm (0.39 ± 0.059 in)
- Rear side door (1) window to body side upper rear applique (c) 10 ± 1.5 mm (0.39 ± 0.059 in)
- Rear side door (1) to body side outer panel (d) 4.0 mm ± 0.75 mm (0.16 in ± 0.03 in)
- Rear side door (1) to body side outer panel (e) 4.0 mm ± 0.75 mm (0.16 in ± 0.03 in)
- Rear side door (1) to rocker panel molding (f) 0.0 mm ± 0.5 mm (0.0 in ± 0.02 in)
NOTE:
The door side upper and lower hinge bolts must remain tight enough to retain door adjusted position.
Fore/Aft Adjustment
- Apply a double layer of masking tape around the perimeter of the painted surfaces.
- Rear Side Door Hinge Bolt - Body Side - Loosen
Do NOT remove the bolts from the door.

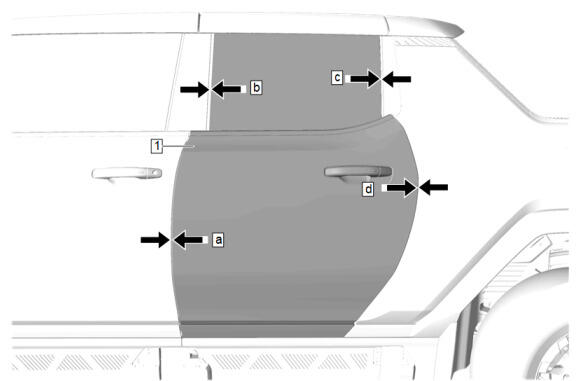

Adjust the rear side door (1) fore and aft by repositioning the door as necessary.
- Rear side door (1) to front side door (a) 4.0 mm ± 1.5 mm (0.16 in ± 0.03 in)
- Rear side door (1) window to front side door window frame rear applique (b) 10 ± 1.5 mm (0.39 ± 0.059 in)
- Rear side door (1) window to body side upper rear applique (c) 10 ± 1.5 mm (0.39 ± 0.059 in)
- Rear side door (1) to body side outer panel (d) 4.0 mm ± 0.75 mm (0.16 in ± 0.03 in)
NOTE:
The door side upper and lower hinge bolts must remain tight enough to retain door adjusted position.
