Cleaning and Inspection Procedure - Required

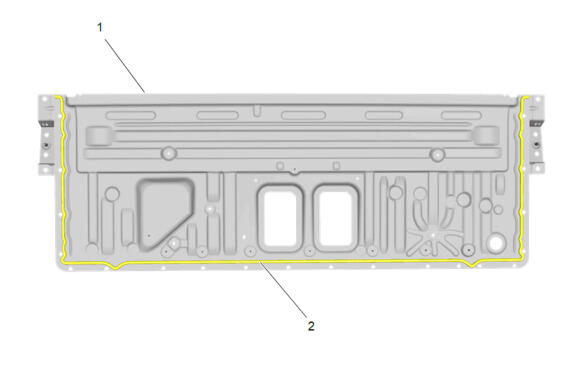

  1. GM6049219Courtesy of GENERAL MOTORS COMPANY

    Inspect the rear end panel reinforcement (1) surfaces and the body side surfaces.

  2. Clean the areas where the sealant (2) is broken or damaged with a plastic scraper.
  3. Apply sealant (2) to the surface of the rear end panel reinforcement (1) where removed. Adhesives, Fluids, Lubricants, and Sealers
