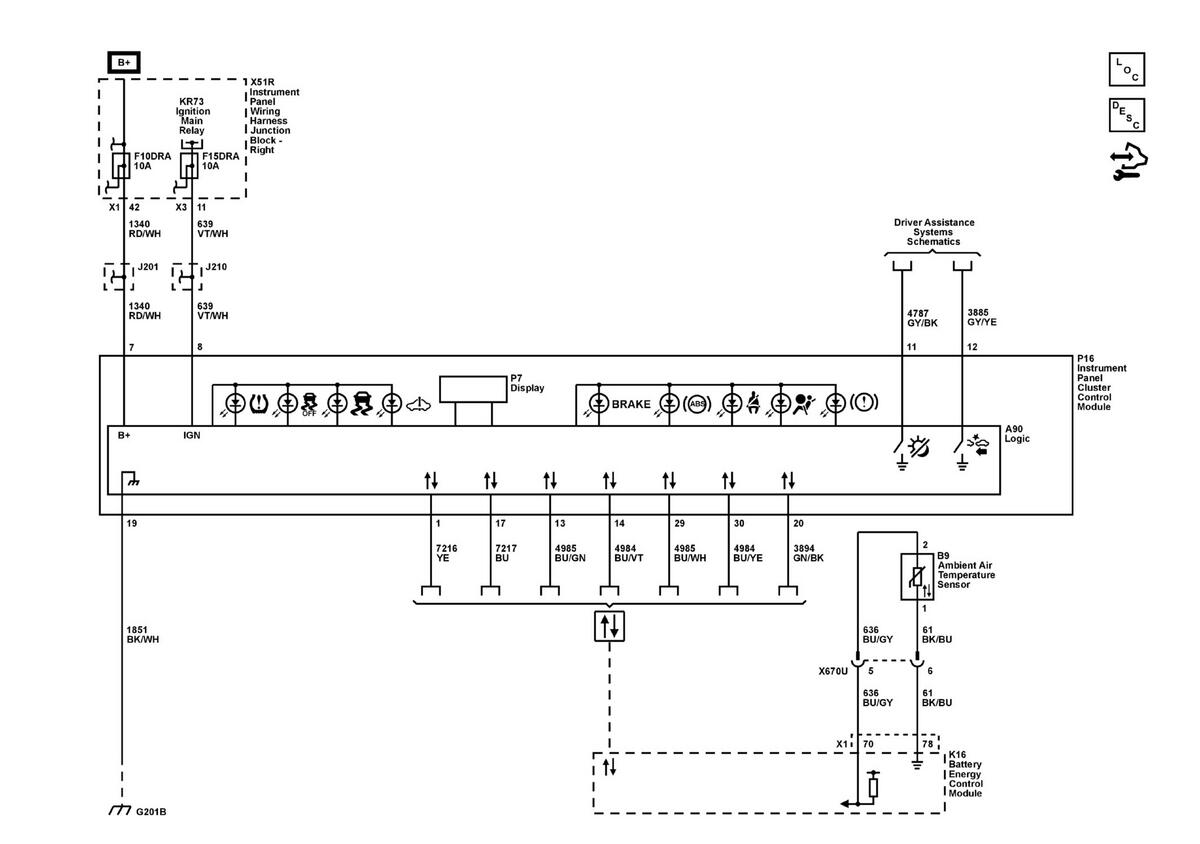

Home >> GMC >> 2023 >> Hummer EV Edition 1 >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel, Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Instrument Cluster
