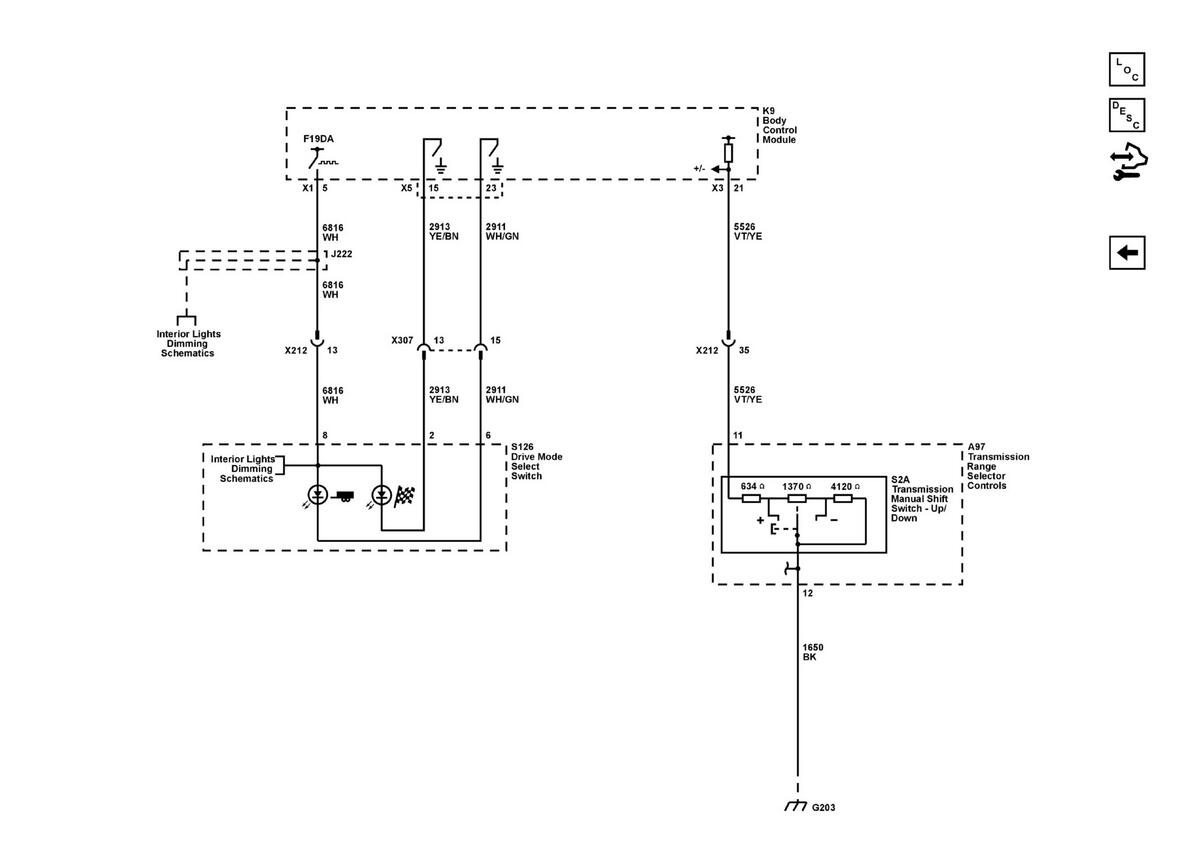

Home >> GMC >> 2023 >> Acadia SLE, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - 9T60 (M3G) Or 9T65 (M3W) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Automatic Transmission Controls Wiring Schematics >> Shift Controls and Indicator
