Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
{If equipped} Air Cleaner Outlet Intermediate Duct (1) - Remove - Air Cleaner Outlet Intermediate Duct Replacement
{If equipped} Turbocharger Outlet Duct Connector (1) - Remove - Turbocharger Outlet Duct Connector Replacement
- NOTE:
Some components not shown for graphic clarity.
Radiator Surge Tank Bolt (1) - Remove
- NOTE:
Some components not shown for graphic clarity.

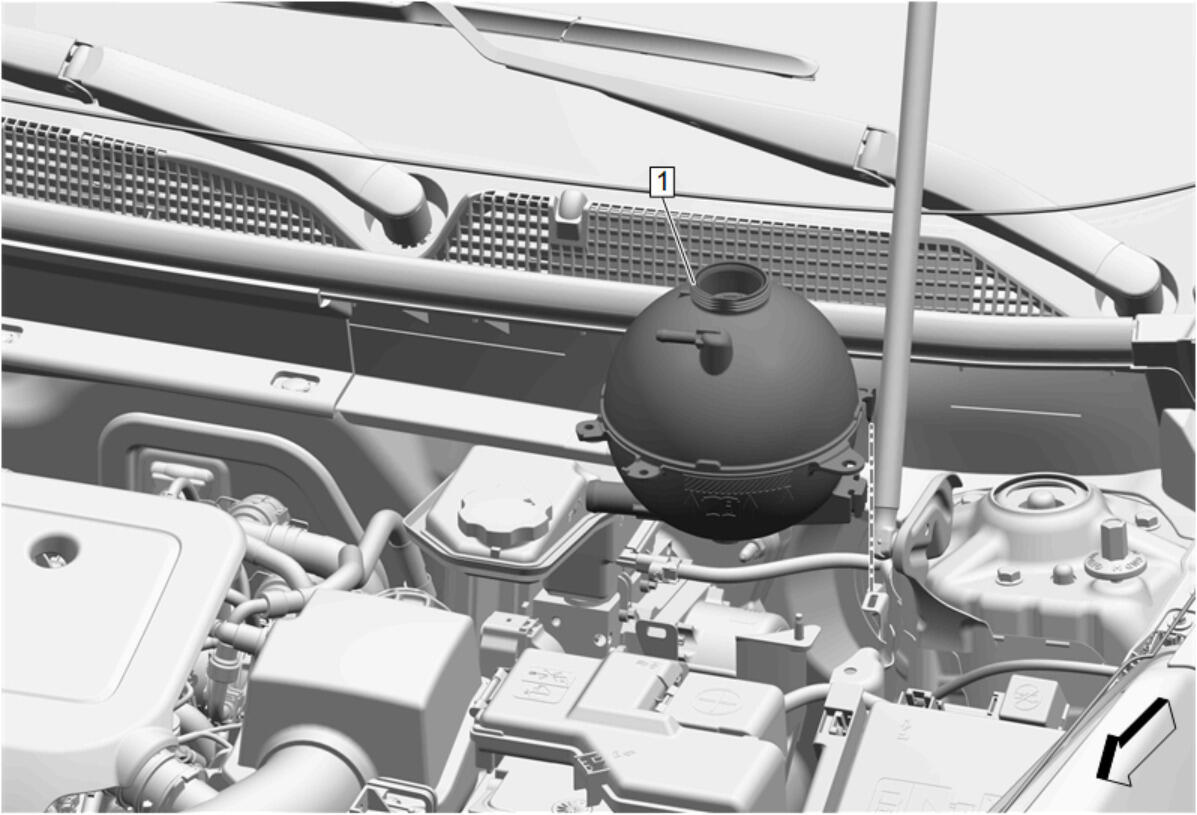

Without opening the cooling system position the radiator surge tank (1) aside.
Disconnect the electrical connector. (1)
- Brake Pipe Fitting (2) - Remove [4x]
- Plug the brake master cylinder ports and the brake pipes to stop fluid loss and contamination.
Disconnect the electrical connector. (1)
- Brake Master Cylinder Bracket Nut (2) - Remove
Wiring Harness Clip (1) - Release
- NOTE:
Some components not shown for graphic clarity.
Brake Master Cylinder Bracket Nut (1) - Remove [2x]
- With the aid of an assistant, hold the brake master cylinder away from the dash panel.
Brake PedalRetainer (1) - Release
- Brake Pedal (2) - Release
- NOTE:
Insert a long, thin tool through the power brake booster pass-through from the engine compartment to remove the brake pedal retainer.
Brake PedalRetainer (1) - Remove and DISCARD
Remove the brake master cylinder (1) from the vehicle.
Brake Master Cylinder Bracket Bolt (1) - Remove [2x]
- Brake Master Cylinder Bracket (2) - Remove and DISCARD
- Transfer components as necessary.
Label the brake pipes to ensure they are re-installed in the correct ports of the brake master cylinder.
Pull the brake pedal rearward to release.
