Home >> GMC >> 2023 >> Acadia SLE, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel, Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Air Temperature, Driver Information Center, and Compass (LGX)

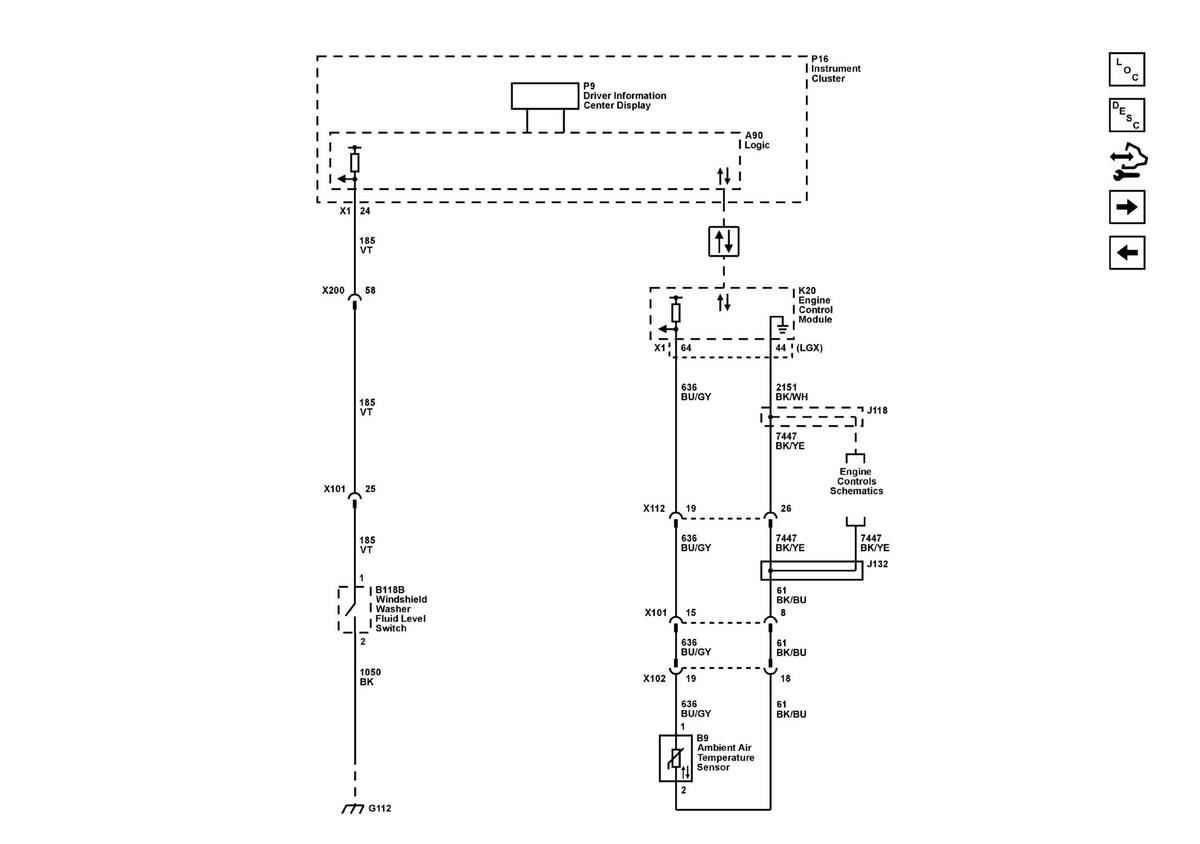

Air Temperature, Driver Information Center, and Compass (LGX)

GM5962036

Courtesy of GENERAL MOTORS COMPANY
