Instrument Cluster Replacement (Equinox)

Courtesy of GENERAL MOTORS COMPANY

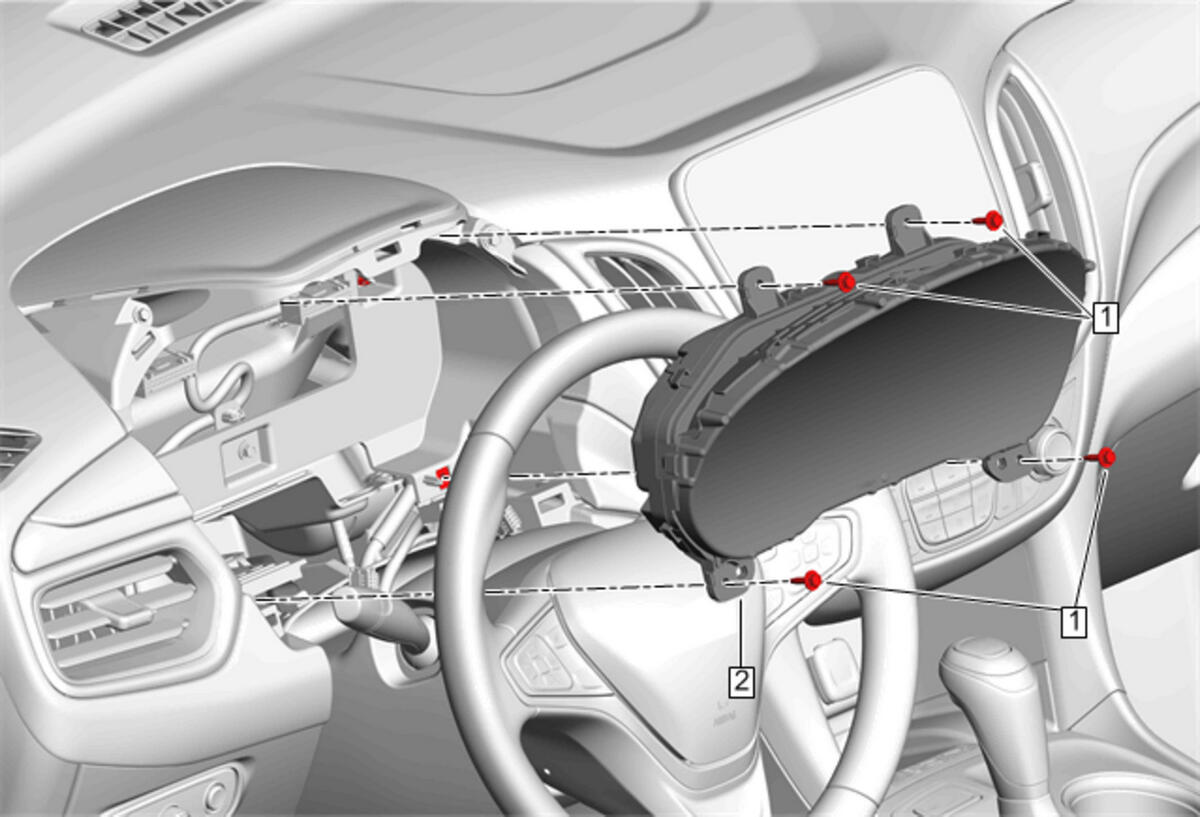

Callout	Component Name
Preliminary Procedure Instrument Panel Cluster Trim Plate Replacement (Equinox)Instrument Panel Cluster Trim Plate Replacement (Terrain)
1	Instrument Cluster Bolt [ 4x ] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Cluster Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Instrument Cluster Bolt [ 4x ]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Cluster

Procedure
