Rear Side Door Armrest Pull Cup Bracket Replacement (Equinox)

Courtesy of GENERAL MOTORS COMPANY

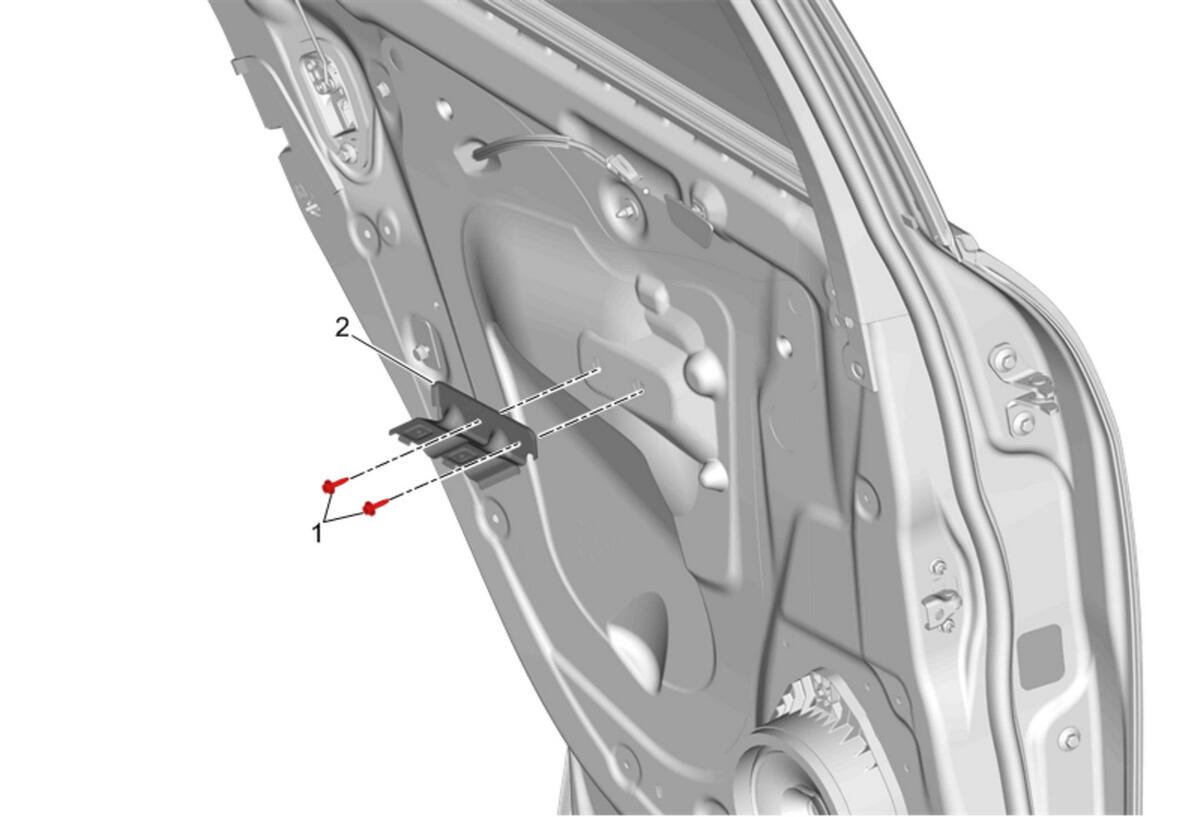

Callout	Component Name
Preliminary Procedure  Rear Side Door Trim Replacement (Equinox) Rear Side Door Trim Replacement (Terrain)
1	Rear Side Door Armrest Bracket Fastener [ 2x ] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Rear Side Door Armrest Pull Cup Bracket Procedure  Reposition water deflector, as necessary.
