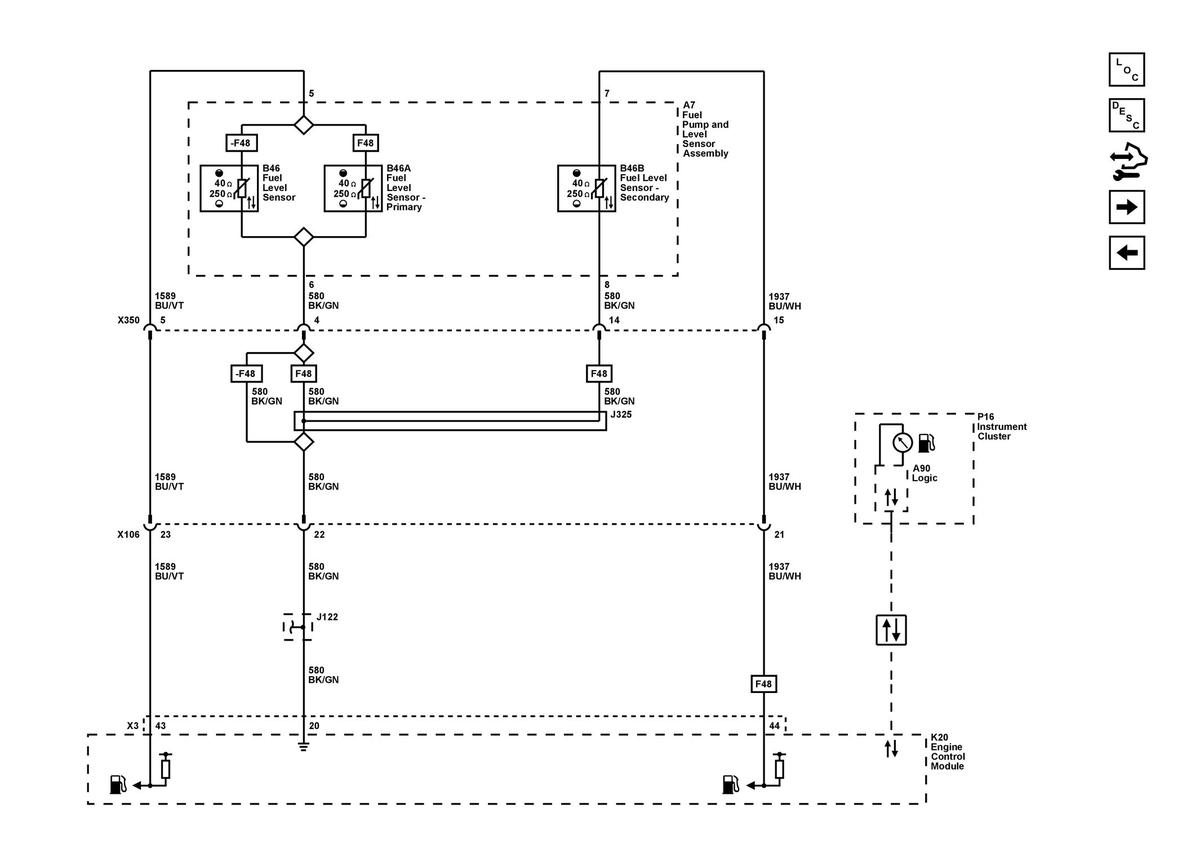

Home >> GMC >> 2022 >> Terrain SLT, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Fuel Gauge (LYX-NUG)
