Installation Procedure

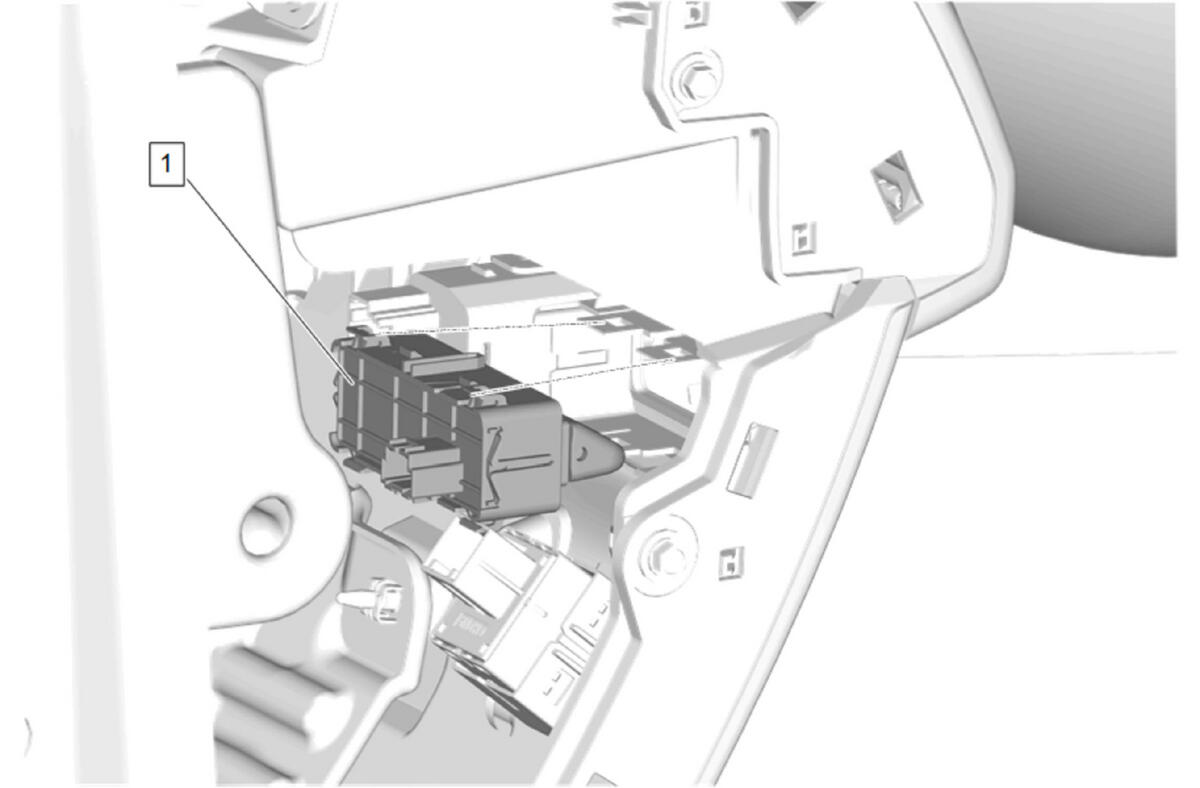

  1. GM5862845Courtesy of GENERAL MOTORS COMPANY

    Head-Up Display Switch (1) - Install

  2. Connect the electrical connector.
  3. GM4694190Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover (1) - Install - Instrument Panel Outer Trim Cover Replacement (Equinox)Instrument Panel Outer Trim Cover Replacement (Terrain)
