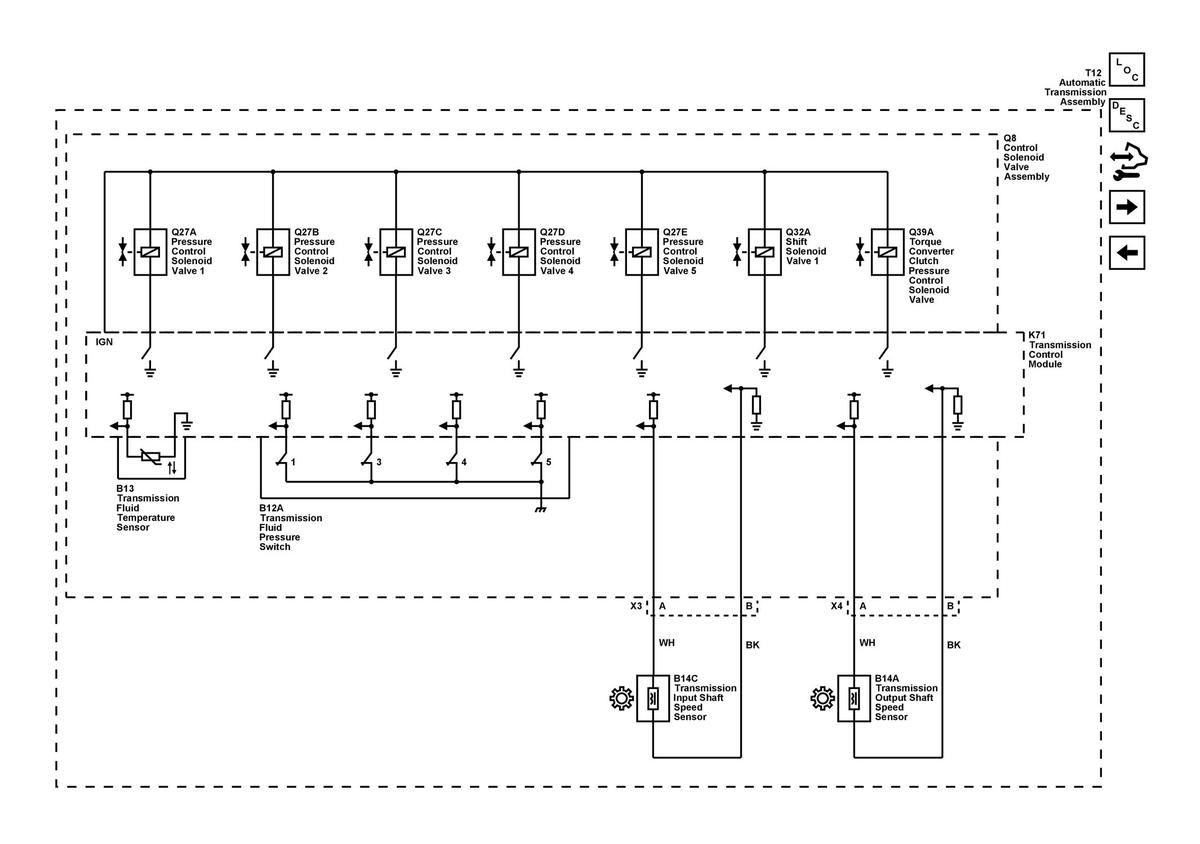

Speed and Temperature Sensors, Valve Position, Pressure and Shift Controls

WARNING: This page is about a different car, the 2022 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
