Accessory AC and DC Power Control Module Replacement (Equinox)

Courtesy of GENERAL MOTORS COMPANY

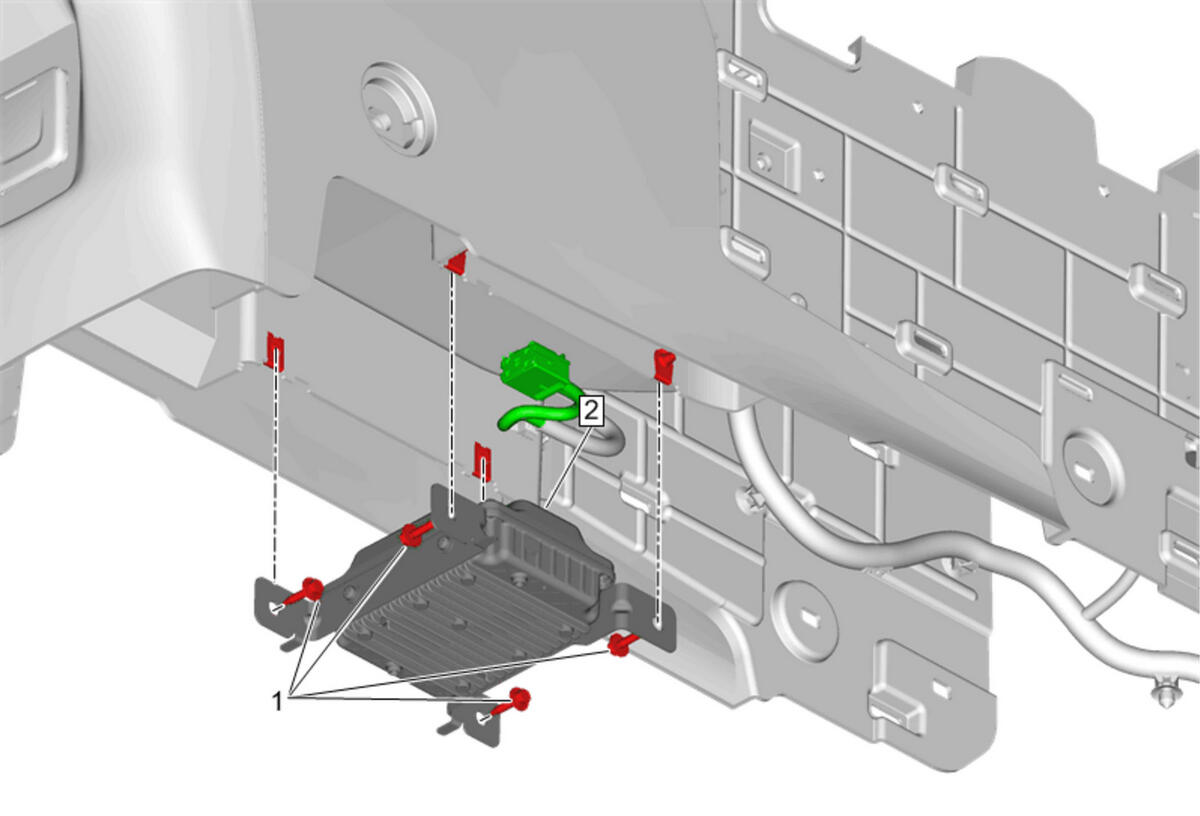

Callout	Component Name
Preliminary Procedure  Front Floor Console Replacement (Equinox)Front Floor Console Replacement (Terrain)Front Floor Console Replacement (Terrain 2022)
1	Accessory AC and DC Power Control Module Bolt [ 4x ] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Accessory AC and DC Power Control Module Procedure  Disconnect the electrical connector.
