Right Rear Seat Harness Routing

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

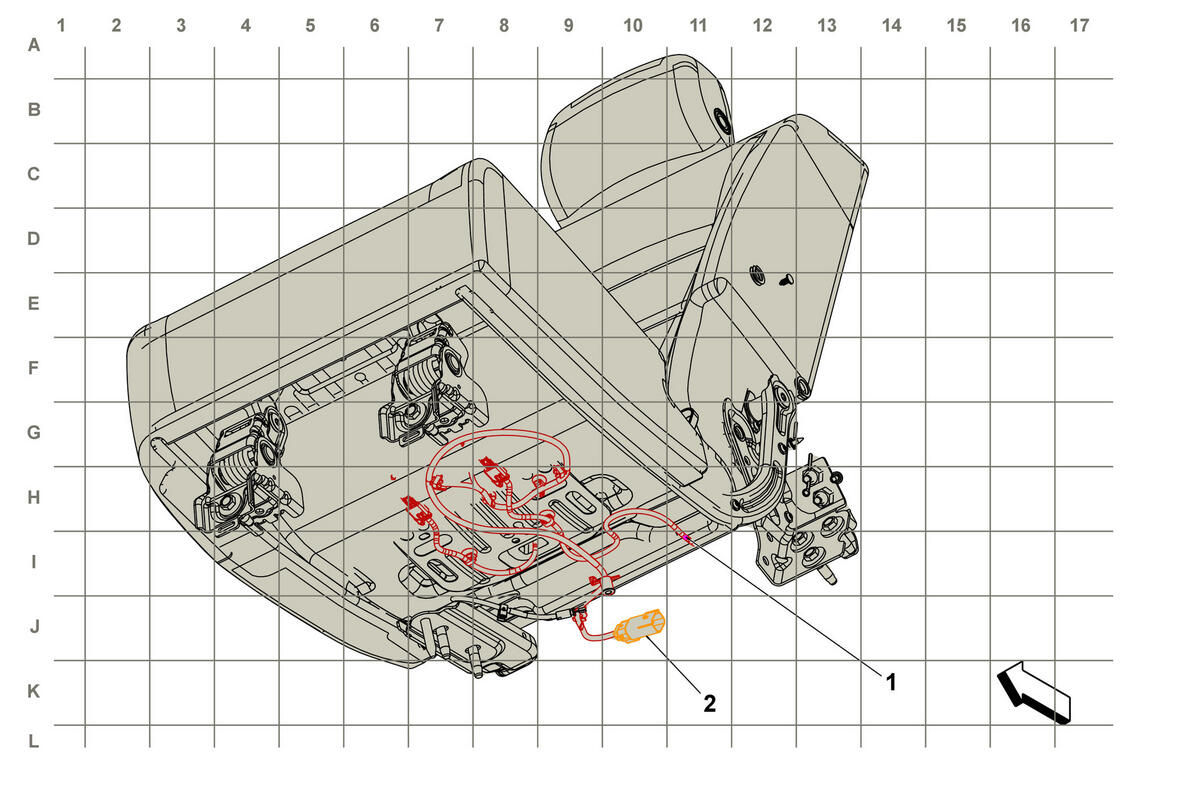

GM4597551Courtesy of GENERAL MOTORS COMPANY
Right Rear Seat Harness Routing

Harness Name Callout
J367 Right Rear Seat Harness (KA6) 1
X340 Body Harness to Right Rear Seat Harness X340 Body Harness to Right Rear Seat Harness 2
