Rear Fascia Harness Routing
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

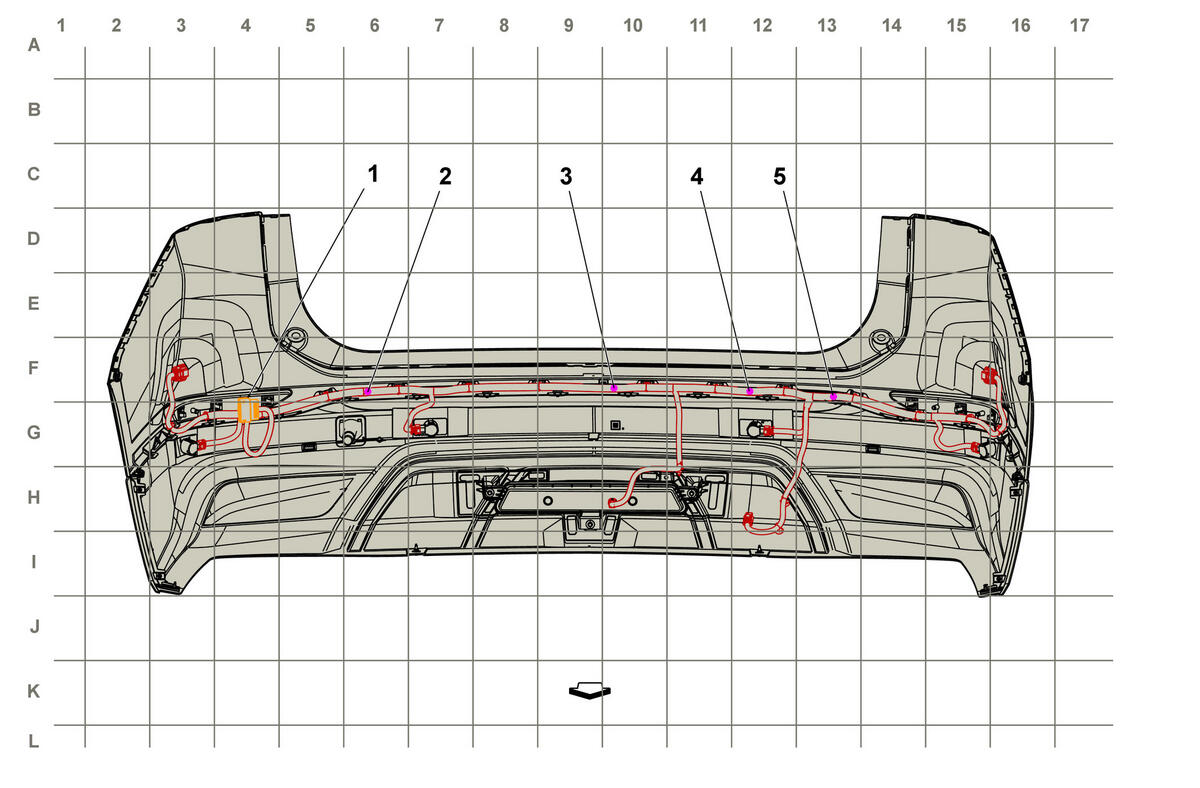

Rear Fascia Harness Routing
| Harness Name | Callout |
|---|---|
| X400 Rear Fascia Harness to Body Harness X400 Rear Fascia Harness to Body Harness | 1 |
| J413 Rear Fascia Harness (UD5) | 2 |
| J412 Rear Fascia Harness (UKC) | 3 |
| J411 Rear Fascia Harness | 4 |
| J410 Rear Fascia Harness (UD5) | 5 |
