Rear Chassis Harness Routing

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

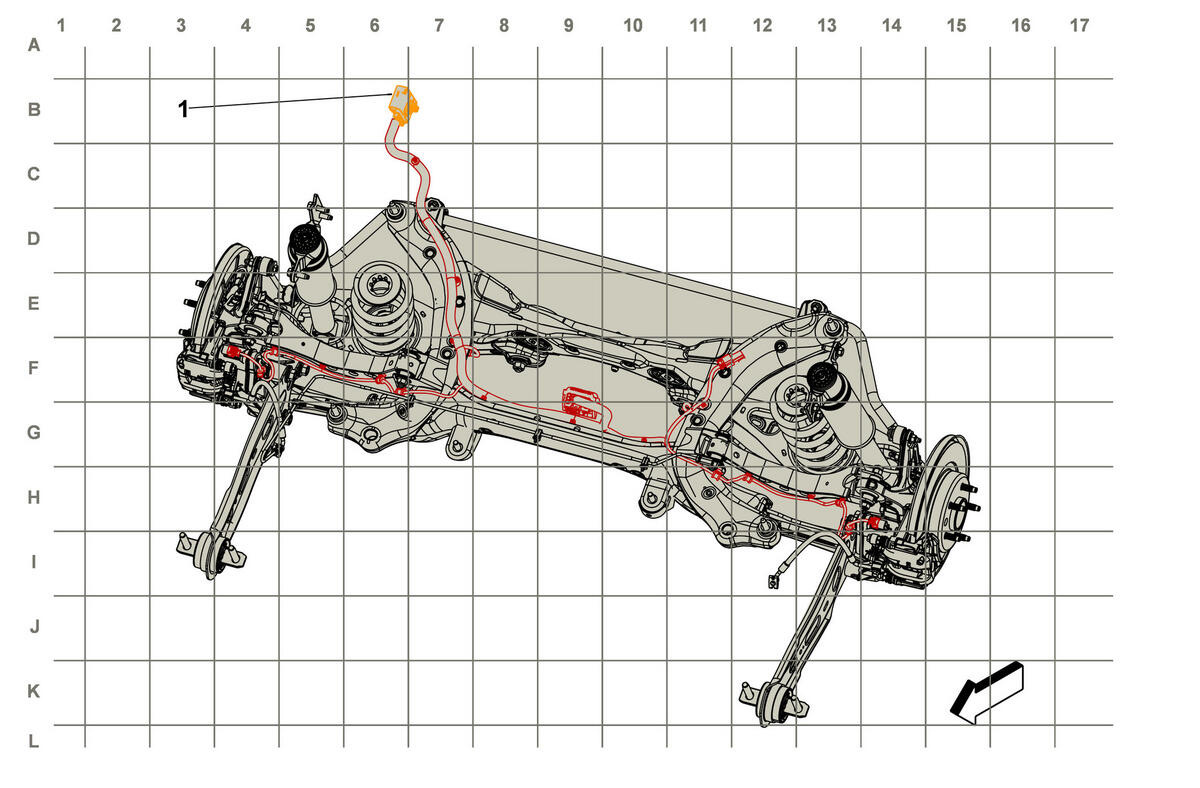

GM4595446Courtesy of GENERAL MOTORS COMPANY
Rear Chassis Harness Routing

Harness Name Callout
X402 Body Harness to Chassis Harness X402 Body Harness to Chassis Harness (X88+F48) , or X402 Body Harness to Chassis Harness (X88-F48) , or X402 Body Harness to Chassis Harness (Z88) 1
