Passenger Seat Harness Routing (2 of 2)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

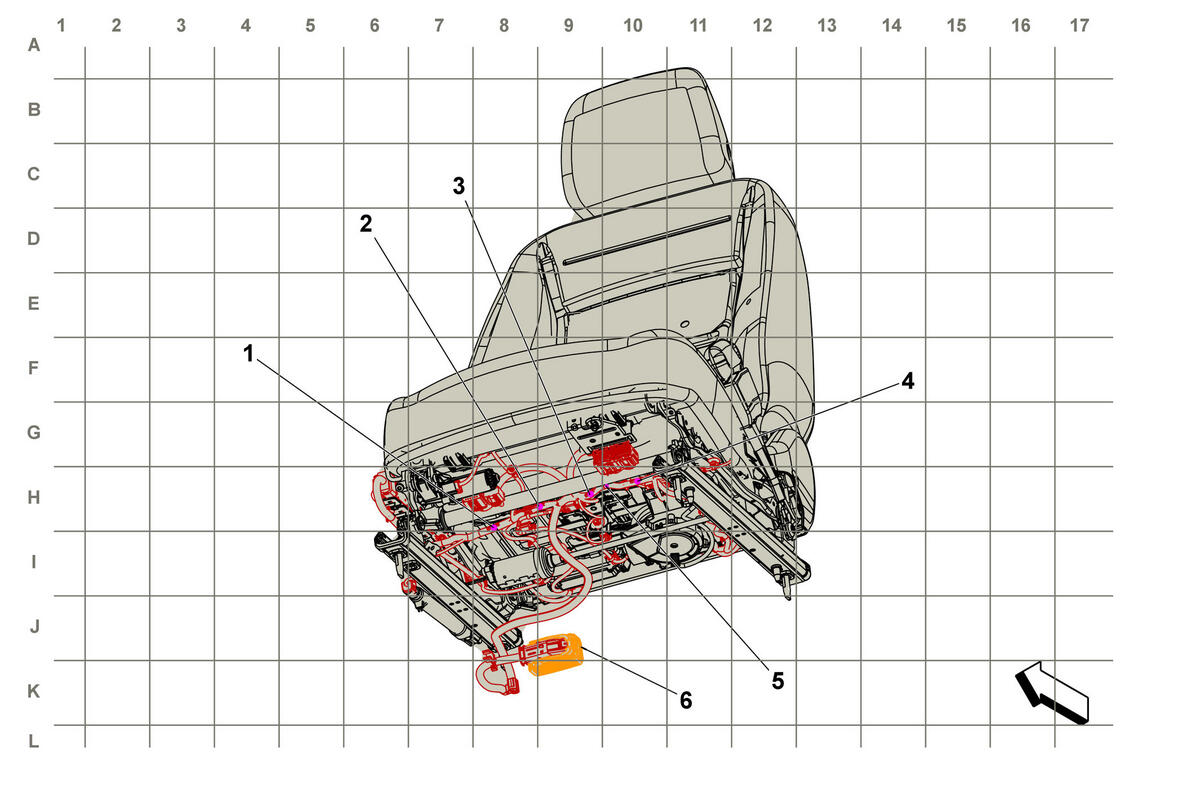

Passenger Seat Harness Routing (2 of 2)
| Harness Name | Callout |
|---|---|
| J359 Passenger Seat Harness | 1 |
| J360 Passenger Seat Harness (KU3) | 2 |
| J361 Passenger Seat Harness (KU3) | 3 |
| J363 Passenger Seat Harness (KU3) | 4 |
| J362 Passenger Seat Harness (KA1) | 5 |
| X320 Passenger Seat Harness to Body Harness X320 Passenger Seat Harness to Body Harness | 6 |
