Passenger Door Trim Panel Harness Routing (GMC)

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

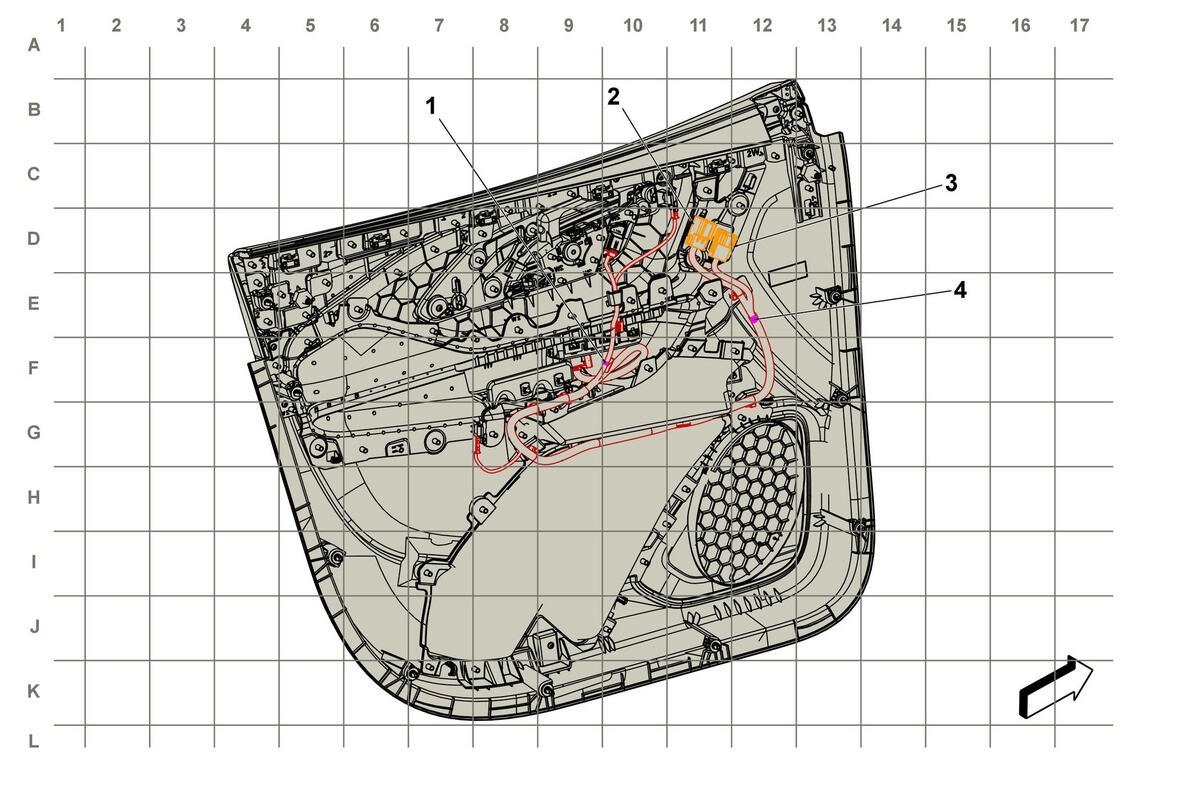

GM4650250Courtesy of GENERAL MOTORS COMPANY
Passenger Door Trim Panel Harness Routing (GMC)

Harness Name Callout
J602 Passenger Door Trim Harness 1
X606 Passenger Door Harness to Passenger Door Trim Harness X606 Passenger Door Harness to Passenger Door Trim Harness 2
X605 Passenger Door Harness to Passenger Door Trim Harness X605 Passenger Door Harness to Passenger Door Trim Harness 3
J603 Passenger Door Trim Harness 4
